Healthcare Environmental Terms and Outcome Measures: An Evidence-based Design Glossary


by Anjali Joseph, Ph.D.; Eileen Malone, RN; Debajyoti Pati, Ph.D.; Xiaobo Quan, Ph.D.



Published by The Center for Health Design, November 2011

Report funded by Tandus Flooring





ABSTRACT



Objective: A key issue increasingly restricting the development and application of evidence-based design (EBD) research is the lack of a standard glossary of terms, definitions, metrics, and measurement tools. As the first step of developing a standard EBD glossary, a comprehensive literature review was conducted to identify variables and metrics in existing EBD research that examined relationships between environmental elements and healthcare outcomes in seven high-priority topic areas: healthcare-associated infections (HAIs), medical errors, patient falls, patient satisfaction, patient waiting, staff efficiency, and staff satisfaction.

Methods: Through an extensive literature search, relevant research publications in each topic area were identified. A total of more than 130 articles were selected for detailed analysis. In each topic area, a table of article analysis was created to compile the relevant information extracted from the literature including: environmental variables, outcomes measures, metrics, measurement tools, and other research information. Definitions and metrics used in the literature for environmental variables and outcome measures were summarized into a glossary table. The relationships between environmental variables and outcomes in each topic area were depicted by a matrix of relationships and a conceptual framework. In the final step, results from the seven topic areas were synthesized into two overall glossary tables—one of environmental variables and one for outcomes.

Findings: A total of 50 environmental variables and 35 outcomes were identified and defined. Environmental variables were typically measured on categorical scale and manipulated by designers or researchers as independent variables. Other measurement methods of environmental variables included both subjective (e.g., questionnaire) and objective measures (e.g., tracer gas concentration decay technique). Almost all outcome variables were measured on an interval/ratio scale. Patient safety outcomes were typically measured by the prevalence of safety incidents and the severity of consequences and were often collected through the review of incident reports and medical records and the observation of healthcare processes. Direct observation was a key method of measuring patient and staff behaviors. Questionnaire survey was used to collect subjective outcomes such as satisfaction and stress. Other measurement methods of outcomes included computer simulation and technical methods such as electrocardiography monitoring. Inconsistency or variation in defining and measuring environmental variables and outcomes posed threats to the validity as well as the generalizability of research.



Conclusions: The first phase work generated useful resources for healthcare design and research and identified strengths, weaknesses, and gaps in the term definitions, metrics, and measurement tools. Future phases will focus on expanding the list of terms and definitions to other topic areas as well as developing more powerful tools and measures.




I. Introduction

Background
Research into the impact of the healthcare environment on healthcare outcomes has been growing rapidly in recent years. Many scientific studies have collected empirical evidence demonstrating connections between the environmental design of healthcare facilities and outcomes that are important for patients, families, healthcare staff, and healthcare organizations (Ulrich et al., 2008). As a result, there is a growing understanding that an appropriately designed built environment can help to improve patient outcomes; create a safe, nurturing, and positive work environment for caregivers; and help achieve organizational and business objectives.



A key issue increasingly restricting the development and application of evidence-based design (EBD) research is the lack of a standard glossary of terms, definitions, metrics, and measurement tools that are commonly accepted by interdisciplinary design team members including researchers, designers, administrators, clinicians and other stakeholders. This results in:


• A lack of generalizability in healthcare design research studies
• Difficulty translating research findings into design knowledge
• Difficulty developing a centralized evidence base for design
• Inefficient communication between stakeholders
• Difficulty benchmarking or comparing multiple facilities and conducting multi-site studies
• Difficulty to make informed predictions based on research findings



To further promote the development, translation and use of research about the built environment and its impact on healthcare outcomes, The Center for Health Design (CHD) initiated a project in October 2009 to develop a standard glossary of key environmental terms and healthcare outcome measures.



Purpose of this project
Phase I of this glossary project identified variables and metrics found in EBD research that examined relationships between environmental elements and healthcare outcomes in seven high-priority topic areas:


• Healthcare-associated infections (HAIs)
• Medical errors
• Patient falls
• Patient satisfaction
• Patient waiting
• Staff efficiency
• Staff satisfaction



Acknowledgements
The authors are grateful for the support of the Research Coalition (view all members here).


The authors would like to specifically thank the EBD glossary groups who provided feedback and guidance during the course of this project:

Paul Barach, MD, MPH, Clinician

Debra Harris, PhD, President and CEO, RAD Consultants
Colonel Guy Kiyokawa, Assistant Chief of Staff Facilities, Office of The Surgeon General
Roger Leib, AIA, ACHA, President, Leib & Leib, Inc.
Mark Patterson, AIA, LEED AP, Vice President, SmithGroup
Bill Rostenberg, FAIA, FACHA, ACHE, EDAC, Principal, Director of Research, Anshen+Allen, a part of Stantec Architecture
Mardelle Shepley, D.Arch., AIA, EDAC, Professor and Director, Center for Health Systems & Design, Texas A&M University
Craig Zimring, PhD, EDAC, Professor, Georgia Institute of Technology



II. Methods

The glossary project was conducted in several steps. Each step focused on one or two of the seven high-priority topic areas.



Advisory committee
An advisory committee consisting of six academic and industry experts from CHD’s Research Coalition provided guidance throughout the project. The committee regularly conducted telephone conferences, reviewed results for each topic area, and provided suggestions and comments including recommendations for additional environmental features and articles to be included in the project’s literature analysis.



Literature search
An extensive search and review of research publications was conducted in each of the seven high-priority topic areas. The search focused on articles that: empirically revealed connections between physical environment variables such as ventilation rate and targeted healthcare outcomes such as infection rate; and were published in peer-reviewed journals in relevant disciplines such as medicine, nursing, healthcare service, management, architecture, and planning.



The literature search was conducted using several methods:


• Relevant articles from CHD’s previous work were examined. This included two extensive reviews of EBD research literature conducted in 2004 and 2008, led by Ulrich and colleagues; and a research project focusing on the effects of sustainable design, sponsored by the U.S. Green Building Council.
• Research databases such as PubMed and EBSCO were searched for articles published after CHD’s literature reviews conducted previously.
• Additional relevant articles were found through references in the existing articles and through recommendations of advisory committee members.



Literature analysis
The top priority of the literature review was to identify all physical environment variables that have been found to impact targeted healthcare outcomes (e.g., HAIs) and to examine how these variables and outcomes were defined and measured in the existing research. Therefore, although multiple research articles were available for one environmental variable in many cases, articles were selected for detailed analysis based on the number and variety of metrics and measurement tools used in the research.



Information extracted from each article included definitions (when available) of the environmental variable(s) and outcome(s), measurement tool(s), sample size(s), setting(s), research design, and research findings. The extracted information was compiled into an article analysis table. The relationships that were studied between environmental variables, intermediate environmental quality variables, and outcome variables were illustrated using a topic model framework and a relationship matrix. Definitions and metrics used in the literature for each environmental variable or outcome measure were compiled into a glossary table and cross-referenced to the relevant topics.



III. Results

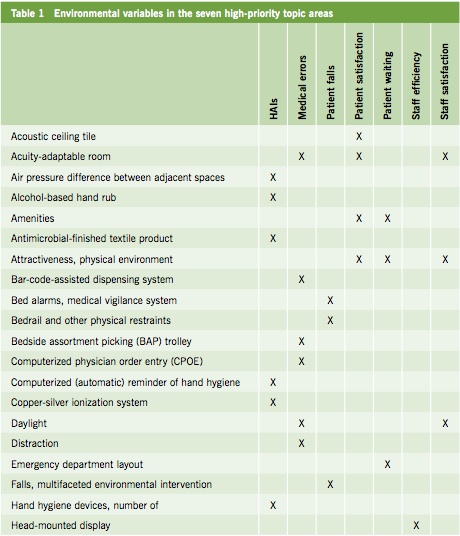

Fifty environmental variables (Table 1) were found to impact 35 outcomes (Table 2) in the seven high-priority topic areas. Several environmental variables influence multiple outcomes in different topic areas, as shown in Table 1.













Detailed findings for each high-priority topic area are presented in three tables and one model/framework:


• An article analysis table including environmental and outcome variables, metrics, measurement tools, setting(s), study design and other details extracted from each article
• A glossary table summarizing the environmental and outcome variables, definitions, metrics, and measurement tools in the topic area
• A matrix illustrating the connections between environmental variables and outcome variables
• A model/framework illustrating the relationships between environmental variables, intermediate environmental quality variables, and outcome variables



The Results chapter is organized into seven sections, each focusing on one high-priority topic area. Each section includes a summary of key research findings for that topic and a model/framework depicting the topic’s environmental variables, intermediate environmental quality variables, outcome variables, and the studied relationships between these variables.



A. Healthcare-associated Infections
The environmental variables impacting HAIs can be grouped according to the major routes of infection transmission–air, inanimate surfaces, water, and the hands of staff members (Figure 1). Studies show that reducing the contamination of air, inanimate surfaces, and water as well as improving hand hygiene influences the prevalence rate of HAI and related outcomes.



Environmental variables impacting air hygiene can be classified into two categories—air flow design and air disinfection. Significant air flow design variables include patient room occupancy (single room versus open unit), location of ventilation grilles, ventilation rate, laminar air flow, air pressure difference between adjacent spaces, and environmental factors impacting natural ventilation (Beggs, Kerr, Noakes, Hathway, & Sleigh, 2008; Gardner, Court, Brocklebank, Downham, & Weightman, 1973; Hutton, Stead, Cauthen, Bloch, & Ewing, 1990; Jiang et al., 2003; Menzies, Fanning, Yuan, & Fitzgerald, 2000).



One computational fluid dynamics study found that placing ventilation grilles on ceilings resulted in faster reduction of bioaerosol concentration than placing the grilles on walls (Beggs et al., 2008). Another study found that air flowing from a positive-pressure room where a patient had a large tuberculous abscess contributed to higher risk of tuberculin conversion in healthcare workers and reactivity in visitors and patients in adjacent areas (Hutton, Stead, Cauthen, Bloch, & Ewing, 1990). The size of operable windows, as measured by the ratio of window area to room volume, was negatively associated with infection rates of severe acute respiratory syndrome (Jiang et al., 2003).



Environmental strategies for air disinfection include high-efficiency particulate air (HEPA) filters, mobile air-treatment units using nonthermal-plasma reactors, ultraviolet germicidal irradiation (UVGI), ventilation system maintenance, and control of construction work (Barnes & Rogers, 1989; Bergeron, Reboux, Poirot, & Laudinet, 2007; Lutz, Rinaldi, Wickes, Huycke, & Mark, 2003; McDevitt, Milton, Rudnick, & First, 2008).



Crimi and others (2006) examined how the location of HEPA filters in the HVAC system significantly influenced air contamination level. Microbiological surveillance data showed that air contamination level was lower in hospital departments with HEPA filters placed at the openings of air ducts (peripheral) versus inside main air ducts (central).



Environmental factors influencing the contamination of inanimate surfaces include interior finish materials such as flooring and furniture surfaces as well as surface cleaning methods (Anderson, Mackel, Stoler, & Mallison, 1982; Lankford, Collins, Youngberg, Rooney, Warren, & Noskin, 2006).



Anderson and colleagues (1982) conducted an experiment in two patient rooms—one with carpet and one with bare vinyl flooring—and reported higher surface contamination on the carpet. Harris et al. (2010) examined bacterial community composition on carpet and vinyl flooring and found a lower number of genera but higher numbers of bacterial genus/species associated with genera of pathogenic bacteria on vinyl samples. Lankford et al. (2006) reported higher vancomycin-resistant enterococci (VRE) growth on vinyl composition tile, microvented perforated vinyl wallcovering, and paper-backed wallcovering than other materials including synthetic or vinyl-backed carpet. Noskin and colleagues (2000) reported that disinfection with a quaternary ammonium germicide successfully removed VRE from vinyl furniture covering but not from fabric covering.



Hand hygiene is an important approach to preventing HAIs. Hand hygiene compliance can be improved by installing more hand hygiene devices, using alcohol-based hand rub dispensers, and utilizing automatic computerized reminder systems (Cohen, Saiman, Cimiotti, & Larson, 2003; Kaplan & McGuckin, 1986; Swoboda, Earsing, Strauss, Lane, & Lipsett, 2004).



In a comparison of two neonatal intensive care units (NICUs) with different hand washing devices, Cohen and colleagues (2003) found that staff hand hygiene was better in the unit with alcohol-based hand rub dispensers than in the unit with antimicrobial soap and sinks. Kaplan & McGuckin (1986) reported that staff hand hygiene compliance was higher in an intensive care unit (ICU) with a bed-to-sink ratio of 1:1 than in an ICU with a bed-to-sink ratio of 4:1. A team led by Swoboda (2004) evaluated the effectiveness of a computerized reminding system that gave prerecorded audio/visual messages instructing staff to wash their hands and found the installation of this system resulted in significant increases in hand hygiene compliance and reduction of infections.



The water transmission of pathogens may be interrupted by a water disinfection system using copper-silver ionization. Modol et al. (2007) found that the installation of the copper-silver ionization system significantly reduced water colonization of L. pneumophila and reduced the infection rate of hospital-acquired Legionnaires’ disease from 2.45 to 0.18 cases per 1,000 patient discharges.



The vast majority of the above-mentioned environmental variables were measured on a categorical scale, such as single- versus multiple-occupancy rooms, central versus peripheral ventilation grilles, alcohol-based hand rub dispensers versus water/soap sinks. Some environmental variables were measured on an interval/ratio scale. For example, ventilation rate was measured by air changes per hour or cubic feet per minute, and one metric of the relative number of hand hygiene devices was bed-to-sink/dispenser ratio. In most cases, environmental variables were manipulated by designers or researchers and treated as independent variables. Other methods of measuring environmental variables included site inspection and the tracer gas concentration decay technique for measuring ventilation rate.



Two groups of outcomes have been examined in literature:


• Healthcare hygiene such as the contamination of environmental surfaces, bioaerosol concentration, and hand hygiene compliance
• Healthcare outcomes such as infection rate, colonization, and length of stay



All outcomes were typically measured on an interval/ratio scale. Measurement tools included:


• Air sampling using particle counter or biocollector
• Surface culture
• Biology analysis
• Generic analysis (denaturing gradient gel electrophoresis)
• Fluorescent marker
• Behavior observation
• Automatic electronic system
• Microbiology surveillance
• Tuberculosis (TB) skin test
• Medical charts
• Estimation using established models/equations



See the glossary table in the topic area of HAI in Appendix for details.



Figure 1. Model of environmental variables examined in relationship to HAIs



B. Medical Errors
Research has found that the design of the physical environment can impact two groups of medical errors—medication errors and surgical errors (Figure 2).



Environmental variables impacting medication errors include lighting fixtures, measures to reduce distractions and interruptions, acoustic design, use of acuity-adaptable rooms, and infrastructures for barcode-assisted dispensing and computerized physician order entry (CPOE) systems.



By manipulating lighting fixtures, Buchanan and colleagues (1991) evaluated the performance of pharmacists under three illumination levels -- 45, 102, and 146 foot candles (ftc) – and found significantly fewer medication dispensing errors at higher illumination levels (146 vs. 45 ftc). Length of daylight exposure had a positive correlation to nurses’ medication administration errors in Alaska (Booker & Roseman, 1995). Distractions and interruptions caused by noise and unrelated traffic near pharmacists’ work areas were associated with higher numbers of dispensing errors (Flynn et al., 1999). Physical separation and distance between items on drug stock storage shelves tended to help reduce medication dispensing errors in pharmacies (Flynn, Dorris, Holman, Garnahan, & Barker, 2002). Renovating and combining a critical care unit and a step-down unit into one, acuity-adaptable unit led to significant reductions in patient transfers and medication errors (Hendrich, Fay, & Sorrells, 2004). A dedicated medication repackaging center in the pharmacy and a bedside assortment picking trolley were among physical environment features supporting the implementation of a barcode-assisted dispensing system and CPOE, both of which significantly reduced dispensing errors (Poon et al., 2006).



Environmental factors impacting surgical errors include l distractions and noise. A simulated experiment showed that surgeons tended to make more errors while performing surgical tasks when exposed to auditory distractions such as popular songs and social conversation irrelevant to the surgical tasks (Pluyter, Buzink, Rutkowski, & Jakimowicz, 2010). Another experiment suggested that reducing the operating room’s background noise level might help reduce surgical errors (Moorthy, Munz, Dosis, Bann, & Darzi, 2003).



Environmental interventions are typically manipulated and measured on a categorical scale such as yes or no. Other environmental variables are measured on an interval/ratio scale. For example, lighting level is typically measured by a photometer; noise level, by a sound meter or dosimeter; distractions and interruptions, by direct observation and video-recording.



The two main metrics of medical errors include prevalence (e.g., dispensing errors per pharmacist per hour) and severity (e.g., minor versus major errors). The two major methods of measuring medication errors are direct observation with expert evaluation and use of existing data from adverse event reporting systems. The direct observation method is more frequently used. Surgical errors are mainly measured by a surgery simulation system.




Figure 2. Model of environmental variables examined in relationship to medical errors


C. Patient Falls
Environmental interventions aiming at reducing patient falls were often studied as one component of comprehensive patient fall prevention programs. Such programs typically included additional interventions such as training, education, physical excise, and policy and operational changes.



Becker et al., (2003) evaluated environmental hazards contributing to patient falls and implemented a fall-prevention program that included modifications to lighting, chair and bed height, floor surfaces, room clutter and grab bars. The program also included staff training, patient education, physical exercise, and protection. The patient fall rate decreased after the program’s implementation. However, environmental interventions could not be disentangled from other interventions, making it difficult to estimate the contributions of the environmental interventions.



Environmental factors impacting patient falls can be grouped into two categories–environmental hazards that directly impact patients and factors that impact staff’s ability to monitor patients and provide assistance (Figure 3).



Fall-related environmental hazards include physical restraints such as bedrails, hard flooring and sub-flooring, noise, shared bathrooms, limited opening area for bathroom doors, and other factors. Capezuti, Strumpf, Evans, Grisso, and Maislin (1998) reported that the removal of physical restraints such as vests, wrist/ankle restraints, and belts resulted in lower rates of falls and fall-related injuries. Healey (1994) found that patients who fell on vinyl flooring received more injuries than patients who fell on carpets. Simpson, Lamb, Roberts, Gardner, and Evans (2004) found that the rate of fall-related hip fractures was lower for falls on a wooden sub-floor than for falls on a concrete sub-floor.



A recently completed multi-site correlational study conducted by Calkins, Biddle, and Biesan, (2011) identified multiple environmental factors impacting patient fall rates: bathroom design (e.g., private versus shared, amount of space between the opening side of the bathroom door and the closest wall or other obstacles, toilet location, grab bars around toilet), patient room layout (e.g., bathroom located at the headwall), flooring (e.g., size of flooring pattern, flooring material), and noise (e.g., alarms, overhead paging).



Design strategies that enhance staff’s ability to monitor patients and provide assistance for the purpose of fall prevention include family space in patient rooms, medical vigilance systems, and decentralized nursing stations.



Renovating a nursing unit from a centralized nursing station with semi-private rooms to decentralized nursing stations with family spaces in single rooms reduced patient falls from 4 or more falls per 100 patient days to 2 falls per patient days (Hendrich et al., 2004). Designated family space in patient rooms was an independent factor contributing to lower rate of patient falls (Calkins et al., 2011). A medical vigilance system in which sensors on patient beds connected to a nursing call system to alarm nurses when patients left their beds, was also effective in preventing patient falls (Spetz, Jacobs, & Hatler, 2007).



Environmental variables related to patient falls are typically categorical variables, for example, the type of flooring materials (carpet vs. vinyl), or the type of nursing station layout (decentralized vs. centralized).Three methods are used to measure environmental variables in observational studies: inspection or audit of the existing physical environment, data collected from existing incidence/accident reports, and direct observation of the usage of environmental features (e.g., use of physical restraints).



In interventional studies, environmental variables are typically manipulated by researchers, designers, or administrators. The major outcomes of these studies are patient falls and fall-related injuries. Currently, there are no universally accepted definitions, metrics, or measurement tools for these outcomes. Both outcomes can be measured by prevalence (e.g., number of falls or injuries per 1,000 patient days) and severity (e.g., percentage of falls resulting in injuries of different severity levels, number of hip fractures per 100 falls).



The measurement of falls and fall-related injuries has been highly dependent on incidence/accident reporting systems used by individual healthcare facilities. Different facilities use different systems, and self-reporting by staff is often biased. The lack of a universally accepted measurement system threatens the validity and generalizability of research.

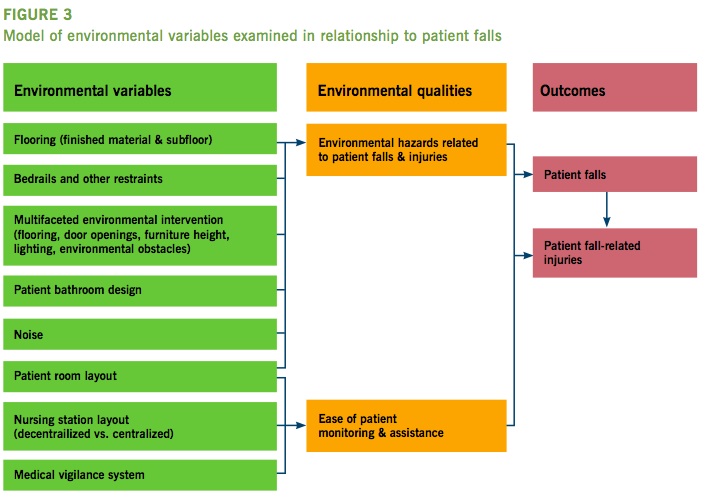

Figure 3. Model of environmental variables examined in relationship to patient falls



D. Patient Satisfaction
Environmental variables impacting patient satisfaction can be classified into two main groups--factors related to patients’ physical comfort and factors related to aesthetic qualities of the physical environment (Figure 4).



Variables influencing patients’ physical comfort include noise reduction measures, room occupancy (number of beds in one room), acuity-adaptable rooms, unit layout, and amenities. Single-bed patient rooms scored higher than double-bed and multi-bed rooms in terms of patient satisfaction with admissions, hospital environment, information, overall quality of care, and other aspects of healthcare services (Harris, Shepley, & White, 2006; Nguyen Thi, Briancon, Empereur, & Guillemin, 2002). A comparison of double-bed rooms and multi-bed rooms showed that patients staying in double rooms were more satisfied than patients in multi-bed rooms (Soufi et al., 2010).



Hendrich and others (2004) reported a significant decrease in patient dissatisfaction after a building renovation combined separate critical care and step-down units into one acuity adaptable unit. Hagerman and colleagues (2005) found that patients were more satisfied with the overall quality of care and staff attitude after sound-reflecting ceiling tiles were replaced with sound-absorbing tiles that reduced noise.



Some before-after studies examined the effects of combined environmental factors on patient satisfaction. Patient satisfaction was significantly higher in a new unit with separated pods of patient bays, decentralized work stations, wireless communication, patient controlled lighting, windows, and a television for each patient than in an old unit with limited privacy, noise, no windows, harsh lighting, and a centralized nursing station (Smykowski, 2008). Patients were more satisfied with a new unit featuring single rooms, spaces for families and visitors, and wireless communication than an old unit lacking these features (Kline et al., 2007).



Within the group of environmental factors related to aesthetic qualities of the physical environment, attractiveness of the physical environment is an important predictor of patients’ overall satisfaction with healthcare service. Higher attractiveness rating scores were associated with higher overall satisfaction in both outpatient and inpatient settings (Becker & Douglass, 2008; Swan, Richardson, & Hutton, 2003).



Specific factors in this group include positive audio distractions such as music; positive visual distractions such as nature views and artwork; lighting; furniture; and finish materials. Women who listened to relaxing music while undergoing a Cesarean delivery reported greater satisfaction with the experience (Chang & Chen, 2005). A new clinic waiting area with separated sub-areas, soothing music, nature views, and warm wall colors and lighting was associated with higher patient satisfaction than the old waiting area which featured one big room and “hospital-like” colors (Groff, Carlson, Tsang, & Potter, 2008). Patients were more satisfied with a waiting room environment incorporating healing features such as wooden chairs, nature photography, and indoor plants than with a traditional waiting room featuring elements such as plastic-covered chairs and small dried flower arrangements (Leather, Beale, Santos, Watts, & Lee, 2003).



The majority of environmental variables found for patient satisfaction were design or experimental interventions manipulated by designers or researchers. The interventions included positive distractions, acoustic ceiling tiles, acuity-adaptable rooms, and amenities.



Other environmental variables were measured using different methods. Patient room occupancy was measured using existing data from medical and administrative databases. Noise was measured by sound measurement equipment.


Subjective rating tools were used for rating physical environment attractiveness and patient perception of the physical environment.



Outcomes were measured by a variety of questionnaires/scales. Samples of patient satisfaction questionnaires/scales, including section titles and actual questions, were listed and compared. Patient satisfaction was found to refer to various aspects of healthcare including physical environment, nurse, physician, overall experience, access/admission, discharge, food, family/visitor, cost, and overall quality. Another finding was that satisfaction surveys used in a research study might only cover a subset of the various aspects of healthcare. Therefore, patient satisfaction scores in different studies may not be fully comparable.



Two major scoring methods used in patient satisfaction are:


• Summation or average of scores of items in the scale or subscales (Groff et al., 2008)
• Count or percentage of the most favorable answer (e.g., “excellent” response in Becker & Douglass, 2008)



Patient satisfaction refers to a patient’s perception about past experience. Patient loyalty indicates the likelihood of a patient using the service again or recommending the service in the future. Another closely related variable in patient satisfaction literature is patient anxiety which is typically measured by standard anxiety scales (e.g., Spielberger State-Trait Anxiety Inventory [S-STAI] score).



Figure 4. Model of environmental variables examined in relationship to patient satisfaction



E. Patient Waiting
Environmental variables such as emergency department (ED) layout and the presence of a rapid assessment clinic or pod have been found to impact actual patient waiting time (Figure 5).



An ED rapid assessment clinic or pod (RAC or RAP) refers to ED spaces that accommodate stretchers for clinician assessment and procedures as well as chairs for patients who will be transferred to receive medications, IV therapy, observation, or who are waiting for results. Both environments are suitable for quick clinician assessment and procedures on patients whose dispositions do not require prolonged assessment or decision-making.



In one study, waiting time to be seen by a doctor was reduced 8 to 11 minutes and length of ED stay was reduced 20 to 25 minutes after an RAC was implemented (Ardagh, Wells, Cooper, Lyons, Patterson, & O'Donovan, 2002). In another study, the RAP helped reduce time from triage to bed by 24 minutes (Bullard, Lo, Latoszek, Holroyd, Rowe, 2008). In yet another study, patient waiting time in the ED treatment room was influenced by ED layout. Patients in a treatment room that was farther from the physician work station and had a solid door instead of soft curtains tended to wait longer (Hall, Kyriacou, Handler, & Adams, 2008).



Several environmental factors impact a patient’s cognitive perception of waiting time, patient waiting experience, and waiting behaviors. Patients who periodically received information regarding ED process and medical procedures on devices such as TVs perceived significantly shorter ED stays and were more satisfied (Papa et al., 2008; Tran, Schutte, Muelleman, & Wadman, 2002).



Research has examined the possible connection between physical environment attractiveness and a patient’s perceived waiting time but did not find any significant direct relationship (Becker & Douglass, 2008; Pruyn & Smidts, 1998). Environmental attractiveness was associated with more favorable perceptions of the quality of care, a higher percentage of anxiety reduction, and higher ratings of staff interactions (Becker & Douglass, 2008; Pruyn & Smidts, 1998). Positive distractions such as visual-audio stimuli presented on a plasma TV, nature photographs on canvas, window films with garden scenes, and cloud patterns attracted patients’ attention during waiting time, significantly reduced patients’ restless behavior and “people watching”, and helped calm children (Nanda, 2010; Pati & Nanda, 2011).



Environmental variables for patient waiting are categorical variables that can be manipulated by experimenters or measured by environment inspection. The exception is physical environment attractiveness which is measured by subjective rating.



A correlation exists between the key outcomes of actual patient waiting time and perceived waiting time, although patients tend to overestimate short waiting times and underestimate long waiting times (Becker & Douglass, 2008).



A patient’s cognitive perception plays a significant role in the relationships between patient waiting and patient satisfaction (Pruyn & Smidts, 1998). Actual patient waiting time was measured by direct observation or using existing medical records. Perceived waiting time was measured by subjective report – patients’ responses to questionnaire surveys. Typically, patient waiting behaviors were directly observed to determine the percentage or number of behaviors in different categories, including continuous behaviors (e.g. reading) and discrete behaviors (e.g. getting out seat) as well as distraction activities, non-distraction activities, and restless/anxious behaviors.

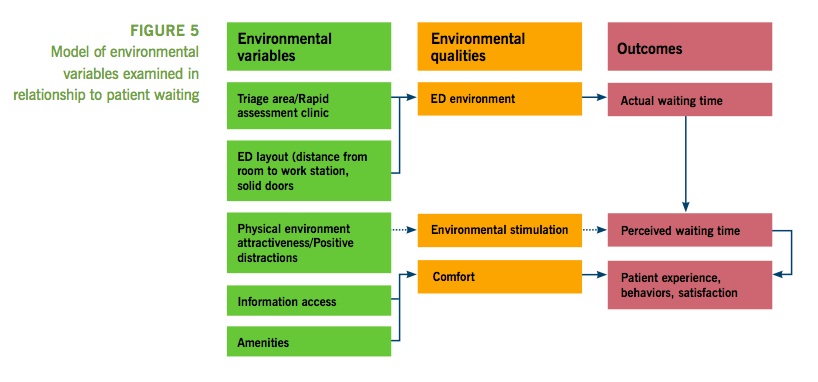

Figure 5. Model of environmental variables examined in relationship to patient waiting



F. Staff Efficiency
Research has identified staff efficiency outcomes that can be influenced by physical environment (Figure 6). These outcomes include staff travel time and distance, team communication, circadian misalignment, nurse response time to patient calls, medication processing time, and surgeon/anesthesiologist performance (e.g., percentage of correct judgments, accuracy of cystic and artery clipping).



A time-motion study based on the space syntax theory indicated that linear integration, a measure of the centrality of the assigned room with regard to the entire nursing unit layout, has a positive impact on the number of nurse entries to patient rooms and the nursing station (Hendrich, Chow, Bafna, Choudhary, Heo, & Skierczynski, 2009).



Several studies found that nurses working in radial units walked less and spent more time with patients than nurses working in rectangular units (e.g., Shepley & Davies, 2003; Trites, Galbraith, Sturdavant, & Leckwart, 1970). Dividing a large, 38-bed unit into four pods, each served by two RNs, significantly reduced nurse walking steps and significantly increased the amount of time nurses spent in direct patient care (Donahue, 2009). One study found that nurses in units with decentralized nursing stations spent more time for all types of communication activities except for communication for patient information and spent more time on patient care activities in patient rooms (Gurascio-Howard & Malloch, 2007). Another study found that nurses in decentralized units had fewer verbal interactions with other nurses (Dutta, 2008).



Patient room layout is an important factor impacting staff efficiency. An open configuration providing an immediate global view of conditions in the caregiver zone and the location of equipment was perceived as best supporting nursing tasks (Pati, Cason, Harvey, & Evans, 2010). Nurses in a NICU spent less time traveling after moving from an old unit with six rooms (each room contained 1 to 5 beds) to a new unit with an open floor plan (Shepley, 2002).



Multiple studies examined the benefits of wireless communication systems. Having a wireless device equipped with audio and visual display significantly reduced nurse response time to patient calls and increased nurse-initiated and team-initiated communications (Guarascio-Howard, 2011). Compared with indirect page communication, direct cellular communication was associated with better response rate and lower error rate in communication (Ortega, Taksali, Smart, & Baumgaertner, 2009). ICU staff reported in a questionnaire survey that wireless email communication helped improve speed and reliability of communication, improve coordination of team members, reduce staff frustration, and provide faster, safer patient care (O'Connor, Friedrich, Scales, & Adhikari, 2009).



The impact of other environmental variables on staff efficiency has also been studied. A drug counter and pharmacy fixture specially designed to fit the ergonomic needs of pharmacists helped reduce prescription filling time and reduce pharmacist travel distance (Lin, Barker, Hassall, & Gallelli, 1988). Decentralized satellite pharmacies close to nursing units and on-line computerized physician order-entry systems might reduce technician and nurse work time as well as reduce pharmacy order-processing time (Poley, Bouwmans, Hanff, Roos, & van Ineveld, 2004; Wietholter, Sitterson, & Allison, 2009). Noise increased errors and path length per movement when surgeons performed laparoscopy tasks (Moorthy, Munz, Dosis, Bann, & Darzi, 2003). Several studies identified the benefits of music for anesthesia monitoring and surgical tasks (e.g., Sanderson, Tosh, Philp, Rudie, Watson, & Russell, 2005). Bright light during the night shift helped reduce circadian misalignment in nightshift workers, helping reduce sleep disorders, fatigue, gastrointestinal disturbances, impaired performance, and declined safety (Crowley, Lee, Tseng, Fogg, & Eastman, 2003).



Environmental variables for staff efficiency are categorical variables that can be manipulated by experimenters or designers. The exception is linear integration, a metric calculated using architectural drawings and space syntax software.



Staff efficiency outcomes were measured using a variety of methods. Staff travel was measured by direct observation (e.g., videotaping, link analysis), work sampling studies (nurses using PDAs to record their locations and activities), pedometers worn by nurses, and indoor position systems that tracked radio-frequency identification (RFID) badges worn by staff.



Methods to measure team communication included observation, audio recording, interview, and questionnaire. Saliva sampling and radioimmunoassay analysis was used to determine circadian misalignment. Nurse response time to patient calls was measured by observation and questionnaire survey. Computer simulation, questionnaire, and data from medical records or architectural drawings were the main methods for measuring medication processing time and surgeon/anesthesiologist performance.

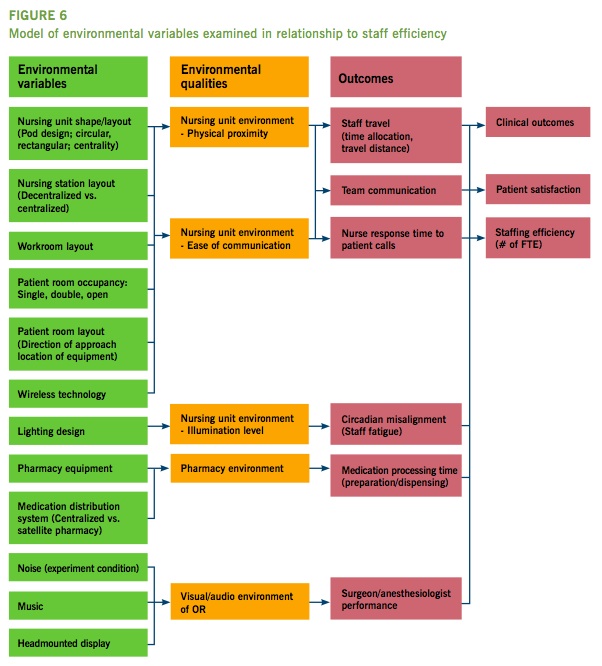

Figure 6. Model of environmental variables examined in relationship to staff efficiency



G. Staff Satisfaction
Multiple environmental variables have been found to impact healthcare staff’s job satisfaction (Figure 7). . Nurses’ self-reported daily exposure to daylight correlated positively with job satisfaction (Alimoglu & Donmez, 2005). Staff working in single-patient rooms reported higher satisfaction with the physical environment, higher job satisfaction, and lower work stress than staff working in open bays (Harris, Shepley, & White, 2006; Shepley, Harris, & White, 2008). Nurses working in acuity-adaptable, single maternity care rooms that enabled patients to stay in one room throughout the intra- and post-partum periods and accommodated staff and family were more satisfied than nurses working in traditional maternity units with separate rooms for labor/delivery and postpartum care (Janssen, Harris, Soolsma, Klein, & Seymour, 2001).



Noise is a major source of stress and annoyance and has a negative impact on staff (Morrison, Haas, Shaffner, Garrett, & Fackler, 2003). Applebaum and colleagues (2010) reported that noise was positively correlated with stress, stress negatively related to job satisfaction, and job satisfaction negatively correlated with turnover intent.



Many before-after studies compared staff satisfaction in new versus old healthcare environments. These studies typically focused on bundled environmental modifications. Berry and Parish (2008) reported that nursing staff working in a new unit featuring 100 percent single rooms, larger space, more natural light, more hand washing stations, and more staff break rooms were more satisfied and less stressed. Rice, Ingram, and Mizan (2008) reported that administrative and professional staff’s job satisfaction significantly increased after a primary care facility moved from a converted Victorian house that was cramped, noisy, and provided minimal privacy, comfort, and decoration to a spacious, new purpose-built facility that provided more light, greater comfort and novel artwork.



Several studies examined the relationship between staff’s perception of physical environment and job satisfaction. Cannon and others (2008) found significant relationships between some staff-perceived environment qualities, such as facility cleanliness and availability of phones, and overall job satisfaction. A survey study by Djukic and colleagues (2010) revealed a group of nurses who negatively perceived their physical work environment, and that the nurses’ perception of the work environment positively related to their job satisfaction.



Several environmental factors such as patient room occupancy, acuity-adaptable room, and bundled environmental changes are categorical variables manipulated by designers or researchers. Noise was measured directly by sound level meters or indirectly by staff perception of noise level. Daylight exposure was self-reported by staff members and categorized as less than 3 hours exposure per day or 3 hours or more exposure per day.



Outcome variables include staff stress, job satisfaction, burnout, intent to turnover, and perception of the physical environment. The vast majority of outcomes were measured using questionnaire scales, some of which are well-developed and validated: Job Satisfaction Scale, Nurses’ Intent to Stay Questionnaire, Rehabilitation Job Satisfaction Inventory, PedQL Staff Satisfaction Coworker Module, Maslach Burnout Inventory, and Work Related Starin Inventory. Staff stress was measured using questionnaire scales as well as physiological methods such as electrocardiography (ECG) monitoring and salivary hormone analysis.

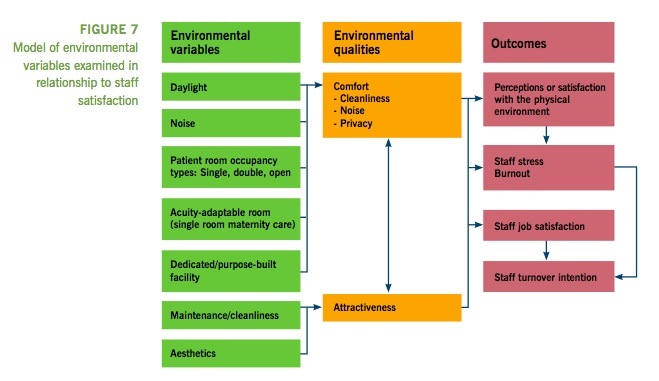

Figure 7. Model of environmental variables examined in relationship to staff satisfaction



IV. Healthcare Environmental Variables

All healthcare environmental variables found during the exploration of the seven high-priority topics discussed in this report are listed in alphabetical order in Table 3. Each identified variable is accompanied by a definition and a summary of the metrics and measurement tools used to study the variable’s impact on different healthcare outcomes.





Table 3. Healthcare environmental variables (Full tables in PDF version)


Acoustic ceiling tile (Patient satisfaction)
Definition

Ceiling tiles that absorb sound reflected off hard surfaces and can be used in a grid or direct-glued to a solid ceiling deck. Typically porous, these products accept and trap sound/vibration and allow it to dissipate before leaving the products (ASI Pro Audio Acoustics, 2010).



Metrics

- Yes/no, before/after
- Noise Reduction Coefficient (NRC) - A measure for rating the overall sound-absorption performance of a material when used in an enclosed architectural space such as an office where sound is being reflected at many angles of incidence. Specifically, it is the 4 frequency averaged absorption coefficients @ 250, 500, 1000 and 2000 Hz, rounded to the nearest 0.05. A material with NRC < 0.50 is a poor absorber, and NRC > .80 is a very good absorber (Armstrong, 2010).



Measurement Method

Design manipulation
- First, sound-reflecting ceiling tiles (13 mm solid painted plaster board tiles) were installed. Four weeks later, the ceiling tiles were replaced with sound absorbing ceiling tiles (40 mm Ecophon high density resin bonded glass wool with a painted surface) of nearly identical appearance (Hagerman et al., 2005).




Acuity-adaptable room, including single-room maternity care (Medical errors, Patient satisfaction, Staff satisfaction)

Definition

Rooms designed with sufficient space and provision for equipment, medical gases, and power to accommodate any level of patient acuity (Evans, Pati & Harvey, 2008). Single-room maternity care refers to maternity care rooms where families are admitted and stay throughout the intrapartum and postpartum periods. The rooms are spacious and include amenities for families. They differ from the traditional care model which requires patients to transfer between multiple rooms, depending upon their care status. (Janssen et al., 2001).



Metrics

- Yes/no, before/after (Hendrich, Fay, & Sorrells, 2004; Janssen et al., 2001)



Measurement Method

Design manipulation
- The coronary critical care unit and medical step-down unit were redesigned and combined into one acuity-adaptable unit (Hendrich, Fay, & Sorrells, 2004).
- Survey responses from a same group of nurses were collected 6 months before and 3 months after moving from a traditional unit to a single-room maternity care unit (Janssen et al., 2001).




Air pressure difference between adjacent spaces (positive/negative pressure room) (HAIs)

Definition

Positive pressure room: a room supplied with enough air pressure to prevent air in corridors and adjacent areas from entering the room. Negative pressure room: a room where enough air has been evacuated to prevent air from flowing out of the room and into adjacent areas (Sehulster et al., 2004).



Metrics

- Yes/no (Gustafson et al., 1982)



Measurement Method

Design manipulation/tracer gas studies
- Air flow studies were conducted using pure sulfur hexafluoride (SF6) as a tracer gas. The gas was released at a steady rate in the positive-pressure room. The concentration of gas in the corridor and nearby rooms was measured using Wilkes-Miran single-beam infrared portable spectrophotometer connected to a Rikadenki recorder (Gustafson et al., 1982).




Alcohol-based hand rub (HAIs)

Definition

A preparation containing alcohol that is designed to be applied to the hands for the purpose of reducing the number of viable microorganisms on the hands. In the United States, these preparations usually contain 60%--95% ethanol or isopropanol (Boyce & Pittet, 2002).



Metrics

- Alcohol-based hand rub vs. water/soap sinks (Cohen et al., 2003)
- Manually operated versus automatic dispensers (Larson et al., 2005)
- Bed-to-sink/dispenser ratio (Kaplan & McGuckin, 1986)



Measurement Method

Design manipulation/site inspection
- Comparison of units with different dispensers/sinks (Cohen et al., 2003; Larson et al., 2005)





Amenities (Patient satisfaction, Patient waiting)

Definition

Features of health services that do not relate directly to clinical effectiveness but may enhance the client's satisfaction and willingness to return (Brown, Franco, Rafeh, & Hatzell, 1998).



Metrics

- Type of amenities (Cusack et al., 2010)
- Level of amenities: high level of amenities (windows, maple furniture, sofa chairs, soundproofing walls, private bathrooms) vs. low amenities (old, 'high-tech, low-touch', dark, small bathrooms) (Janssen, Klein, Harris, Soolsma, & Seymour, 2000), amenities such as décor and entertainment facilities appropriate for children (Judkins, 2003)



Measurement Method

Environmental inspection/audit

- Seven amenities presented in the waiting room (comfy chair, magazine and puzzle book, plasma TV, paintings on walls, views from windows, computer, potted plants) reacted to by patients on questionnaires (Cusack et al., 2010)
Design manipulation
- New single-room maternity care unit with more amenities versus old rooms (Janssen et al., 2000)
- New ED dedicated to pediatric patients with décor and entertainment appropriate for children (Judkins, 2003)




Antimicrobial-finished textile product (HAIs)

Definition

Textile products containing antimicrobial agents (e.g., silver, quaternary ammonium chloride, chitosan) which show antibacterial activity against a wide range of microorganisms (Takai et al., 2002).



Metrics

- Various textile materials containing different antimicrobial agents, e.g., Ag. Zn. Ammonium Zeolite and chitosan (Takai et al., 2002).



Measurement Method

Research manipulation

- Testing of five textile materials containing Ag. Zn. Ammonium Zeolite and chitosan, to various extents, and an untreated control material (Takai et al., 2002)




Attractiveness, physical environment (Patient satisfaction, Patient waiting, Staff satisfaction)

Definition

Aesthetic appeal of the physical environment, including the surrounding external environment, the architectural design, facility upkeep and cleanliness, and other physical elements (Becker & Douglass, 2008).



Metrics

- Physical environment attractiveness score (summation of ranks) (Becker & Douglass, 2008)
- Attractiveness rating on 5-point scale (Pruyn & Smidts, 1998)
- Two types of design: an old cement building (transferred from a juvenile hall, ugly and depressing, dimly lighted, glare, stuffy, noisy) versus a new facility (pleasant-looking wood-paneled cottages where staff felt freer, lighter, and more positive; well lighted, adequate ventilation, quiet) (Folkins, O'Reilly, Roberts, & Miller, 1977)
- Appealing room versus typical room (Swan et al., 2003)



Measurement Method

Subjective rating
- Four photos of each of six facilities were presented to six university graduate students in non-design majors. The students were asked to rank the environments from most attractive (6) to least attractive (1). The ratings from all students regarding one facility were summed to create an environmental attractiveness score with a higher score reflecting a more attractive environment (Becker & Douglass, 2008)
- Perceived attractiveness, measured on four attributes: atmosphere, cleanliness, spaciousness and climate on a 5-point scale by patients (Pruyn & Smidts, 1998)


Design manipulation
- Appealing, hotel-like rooms featured wood furniture, decorator art, carpeted floors, crown molding, and ceramic tile baths (Swan et al., 2003)
- Pleasant-looking wood-paneled cottages where staff felt freer, lighter, and more positive; well lighted, adequate ventilation, quiet (Folkins et al., 1977)




Barcode-assisted dispensing system (Medical errors)

Definition

A medication dispensing system that uses barcodes to ensure that the correct medication, in its correct dose and formulation, is being dispensed (Poon et al., 2006).



Metrics

- Yes/no, before/after (Poon et al., 2006)



Measurement Method

Design manipulation
- A dedicated repacking center (for affixing a barcode onto each medication if the manufacturer had not already done so) was built to implement a barcode-assisted dispensing system in 3 configurations. In 2 configurations, all doses were scanned once during the dispensing process. In the third configuration, only 1 of several doses of the same medication being dispensed was scanned (Poon et al., 2006).




Bed alarms, medical vigilance system (bed sensors connected to a nurse call system) (Patient falls)

Definition

A passive sensor array, including bed exit sensors, embedded into a coverlet around the patient bed's mattress and connected to the nurse call system (Spetz et al., 2007).



Metrics

- Presence versus absence (Spetz et al., 2007)



Measurement Method

Experimental manipulation
- The medical vigilance system was installed on 42% of beds in a nursing unit. Outcomes of patients on these beds were compared with outcomes of patients on beds without the system (Spetz et al., 2007)




Bedrail and other physical restraints (Patient falls)

Definition

Physical restraints: mechanical or manual devices used to limit a patient’s physical mobility (Capezuti et al., 1998).
Bedrail: a rail or board running along the side of a patient bed; often used to prevent easy egress from the bed (Hanger et al., 1999).



Metrics

- Nighttime bed rail use (Capezuti et al., 2002)
- Physical restraints use (Capezuti et al., 1998)
- Bed rail use (Hanger et al., 1999)
- Bed rail use versus no use (Van Leeuwen et al., 2001)



Measurement Method

Observation

- Nighttime bed rail uses were classified into several levels--bilateral rail use, one-side rail use, no use of side rail (Capezuti et al., 2002)
- Levels of physical restraints used in nursing homes were directly observed and classified into several levels: vest, wrist/ankle, belt, pelvic, geriatric/recliner chairs, wheelchairs with fixed tray tables (Capezuti et al., 1998)
- In a fall-prevention program, bed rail use was reduced through policy change and education (Hanger et al., 1999)



Incidence/accident reports
- Bed rail use data were collected from patient incident forms (Van Leeuwen et al., 2001)




Bedside assortment picking (BAP) trolley (Medical errors)

Definition

A new type of drug trolley with separate compartments for ward-specific stock and patient-specific medicines. Equipped with a wireless laptop that connects to electronic medication administration records and guides the nurse to the correct location of a drug (Ros & de Vreeze-Wesselink, 2009).



Metrics

- Yes/no, before/after (Ros & de Vreeze-Wesselink, 2009)



Measurement Method

Design manipulation
- A new type of drug trolley - bedside assortment picking trolley - was developed and introduced to replace a conventional trolley (Ros & de Vreeze-Wesselink, 2009)





Computerized physician order entry (CPOE) (Medical errors)

Definition

Computer-based systems for automating the medication ordering process. A basic CPOE ensures standardized, legible, complete orders by accepting only those orders that are typed and in a standard and complete format (Kaushal & Bates, 2001).



Metrics

- Yes/no, before/after (King, Paice, Rangrej, Forestell, & Swartz, 2003)



Measurement Method

Design manipulation
- A commercially available CPOE system developed by Eclipsys was implemented in two inpatient wards. The CPOE system was originally introduced as Carevision, underwent periodic product upgrades, and is now commercially available as Sunrise Clinical Manager (King et al., 2003)





Computerized (automatic) reminder of hand hygiene (HAIs)

Definition

A computerized system providing prerecorded, audio/visual messages instructing healthcare personnel to wash their hands before exiting the room or within 10 seconds of exiting the room. The system monitors room entry/exit and handwashing device usage (Swoboda et al., 2004).



Metrics

- Yes/no (Swoboda et al., 2004)



Measurement Method

Research manipulation

- The installation of an automatic reminding device (Swoboda et al., 2004)





Copper-silver ionization system (HAIs)

Definition

A system that reduces Legionella colonization of a hospital water supply by introducing positively charged copper and silver ions into the water system (Modol et al., 2007).



Metrics

- Presence/absence (Modol et al., 2007).



Measurement method

Design manipulation
- The installation of a copper-silver ionization system (Modol et al., 2007).




Daylight (Medical errors, Staff satisfaction)

Definition

Light originating from the sun that reaches Earth’s surface after reflecting off the sky's vault (Zunde & Bougdah, 2006).



Metrics

- Hours of exposure to direct daylight in a typical work day (less than 3h versus 3h or more) (Alimoglu & Donmez, 2005)

- Average hours of daylight/darkness for each month (Booker & Roseman, 1995)



Measurement method

Questionnaire survey
- Self-reported by a question asking about length of exposure in a personal data collection form (Alimoglu & Donmez, 2005).



Existing data
- Existing data from public weather service (Booker & Roseman, 1995)





Distraction (Medical errors)

Definition

An external stimulus causing observable responses from healthcare workers without disrupting the ongoing, productive activity. Distractions (Flynn et al., 1999).



Metrics

- Distraction condition versus non-distraction condition (Pluyter et al., 2010)
- Number of distractions per pharmacist per half hour (Flynn et al., 1999)



Measurement method

Experimental manipulation
- In one experimental condition, subjects listened to popular songs combined with social conversation irrelevant to the surgical task and non-optimal laparoscope navigation (Pluyter et al., 2010).


Video recording of actual work
- Two video cameras recorded prescription-filling operations from two different angles throughout each eight-hour study day. The videotapes were reviewed simultaneously to record time of interruption or distraction, prescription-filling task affected, type of interruption or distraction, reason for the interruption or distraction, and study participant affected (Flynn et al., 1999)




Emergency Department, layout (Patient waiting)

Definition

Spatial configuration of the ED, including treatment rooms, work stations, and other components (Hall et al., 2008).



Metrics

- Distance from treatment room to work station

- Solid door versus soft curtain (Hall et al., 2008)



Measurement method

Environmental inspection/audit
- Nine experimental conditions defined by three directions of approach to the patient and three conditions of IV pole location (Hall et al., 2008)





Falls - Multifaceted environmental intervention (Patient falls)

Simultaneous modification of multiple aspects of the physical environment for the purpose of reducing patient falls and injuries (Becker et al., 2003; Brandis, 1999).



Metrics

- Before versus after the implementation of a fall-prevention program including environmental modifications (Becker et al., 2003; Brandis, 1999)



Measurement method

Design manipulation
- Environmental modification based on environmental hazard check and discussion with staff and administrators (lighting, chair and bed height, floor surfaces, room clutter, grab bars, walking aids) together with staff training, resident education, exercise and hip protectors) (Becker et al., 2003)




Hand hygiene devices, number of (HAIs)

The number of staff-accessible handwashing sinks (Kaplan et al., 1986).



Metrics

- Bed-to-sink/dispenser ratio (Kaplan et al., 1986)



Measurement method

Design manipulation/site inspection
- Dividing the total number of beds in one unit by the number of sinks/dispensers in that unit (Kaplan et al., 1986)




Head-mounted display (Staff efficiency)

Definition

A scanning retinal display that uses a laser to project a monochromatic red image onto a transparent monocle which then reflects the image on the wearer’s retina. The device keeps patients’ vital signs within view of the anesthesiologist at all times, precluding the need to look at a patient monitor (Liu et al., 2009).



Metrics

Monitoring display type

- Head-mounted display vs. standard monitoring equipment(a video graphics array screen mounted within the anesthesia machine) (Liu et al., 2009)



Measurement method

Experimental manipulation
- Subjects were asked to perform simulated monitoring tasks when the HMD was used versus not used (Liu et al., 2009).




High-efficiency particulate air (HEPA) filter (HAIs)

Definition

A high-efficiency air filter that removes at least 99.97% of airborne particles measuring 0.3 micrometers (µm) in diameter (Sehulster et al., 2004). Can be portable or installed in an HVAC system.



Metrics

- Yes/no (Barnes & Rogers, 1989; Hahn et al., 2002)



Measurement method

Design manipulation
- Before/after installation of HEPA filter (Barnes & Rogers, 1989)


Site inspection
- One unit wing with HEPA filters (including some rooms w with laminar air flow) versus a wing without HEPA filters (Hahn et al., 2002)




HEPA filters, location of (HAIs)

Definition

The locations of HEPA filters in an HVAC system (Crimi, et al, 2006).



Metrics

- Central (inside main air ducts) versus peripheral (at the openings of ducts) (Crimi, et al, 2006)



Measurement method

Site inspection
- Hospital departments with central HEPA filters and departments with peripheral HEPA filters were identified and compared (Crimi et al., 2006)




Illumination level (illuminance) (Medical errors, Staff efficiency)

Definition

The intensity of luminous flux (Stein, 1997).



Metrics

- Lux (1 lux=1 lumen/m2)
- Footcandle (1 ftc = 10.764 lux)
- Bright light versus normal room lighting (Crowley et al., 2003)



Measurement method

Photometer

-Photometer (model IL1350, serial 2048, International Light Inc., Newburyport, MA) with an illuminance sensor (model SCD110, serial 1366, International light). Eight measurements were taken, starting 6 inches from the end of the conveyor belt and every 12 inches thereafter. The amount of illumination represents the mean of the eight measurements taken daily for seven days (Buchanan et al., 1991).


Design manipulation
- Bright light (BL) exposure during night shifts compared with normal room lighting. Bright light (~5000 lux) was produced by 3 light boxes (61.0 cm wide, 77.5 cm high, 12.1 cm deep, cool white fluorescent lamps, Apollo Light Systems Inc., Orem, UT) set on the perimeter of a large, round table facing the center of the table. Normal room light is about 150 lux (Crowley et al., 2003).




Information access (Patient waiting)

Definition

Patient access to information regarding ED process (time to see a doctor/consultant, blood draw) and medical and therapeutic plans (Tran et al., 2002).



Metrics

- Yes versus no (Tran et al., 2002)
- Before versus after (Papa et al., 2008)



Measurement method

Experimental manipulation
- In the intervention group, ED process information and medical information were provided to each patient every 15 minutes. The control group received regular care (Tran et al., 2002)
- An instructional waiting room video explaining what patients should expect during ED visits played continuously on a TV set in the waiting room (Papa et al., 2008)




Interior finish material (HAIs, Patient falls)

Definition

Material covering interior surfaces such as ceiling, floors, and walls (Calkins et al., 2011; Noskin et al., 2000).



Metrics

- Flooring type: carpet versus vinyl (Donald et al., 2000; Healey, 1994); with carpet versus without carpet (Simpson et al., 2004); linoleum, VCT, ceramic tile (Calkins et al., 2011); carpet, vinyl, fabric, wood, rubber, etc. (Noskin et al., 2000)
- Flooring pattern: pattern size (no, small [less than 1”], medium [1’-6”], large pattern [>6”]) (Calkins et al., 2011)



Measurement method

Research manipulation
- Testing of different materials (Noskin et al., 2000)
- Installation of a new carpet flooring (Donald et al., 2000)
- Incidence/accident reporting
- Data about flooring types were gathered from the accident forms completed by nurses (Healey, 1994)


Environmental inspection/audit
- Existing flooring materials were examined through environmental inspection (Simpson et al., 2004)




Interruption (Medical errors)

Definition

Cessation of productive activity before completing a prescription-filling task, due to any externally imposed, observable, or audible reason. Interruptions can be caused by staff looking at people passing through the ambulatory care pharmacy and related to prescription-processing questions (Flynn et al., 1999).

Situation in which a nurse ceased a medication preparation or administration task in order to attend to an external stimulus (Westbrook et al., 2010).



Metrics

- Number of interruptions per pharmacist per half hour (Flynn et al., 1999)
- Number of interruptions during one medication administration (Westbrook et al., 2010)



Measurement method

Video recording
- See “distraction”


Observation
- Observers (registered nurses and physicians) used a structured observational tool on a PDA to record number of interruptions that a nurse experienced (Westbrook et al., 2010)




Laminar air flow (LAF) (HAIs)

Definition

HEPA-filtered air blown into a room at a rate of 90 ± 10 feet/min in a unidirectional pattern with 100 ACH–400 ACH (Sehulster et al., 2004).



Metrics

- Yes/no (Barnes & Rogers, 1989)



Measurement method

Design manipulation
- Before/after the installation of LAF (Barnes & Rogers, 1989)




Light fixture (luminaire) (Medical errors)

Definition

A complete lighting unit consisting of a light source (one or more lamps), and the parts designed to position the light source and connect it to the power supply. Parts for protecting the light source or ballast and for distributing the light may be included. (National Fire Protection Association, 2010)



Metrics

- Different lighting conditions determined by supplemental lighting fixtures and color filters (Buchanan et al., 1991)



Measurement method

Design manipulation
- The installation of supplemental light fixtures and the removal of color filters (Buchanan et al., 1991)




Medication distribution system (Staff efficiency)

Definition

A system for preparing and distributing medications for the treatment of patients in healthcare settings (Poley et al., 2004).



Metrics

Medication distribution system type:
- A decentralized, patient-orientated, ready-to-use drug distribution system with satellite pharmacies close to the patient units versus a ward stock system in which routinely used drugs are issued by the hospital’s central pharmacy, which is located in a neighboring building, and stored in cupboards on the wards (Poley et al., 2004)



Measurement method

Design manipulation
- Patient units that used different medication distribution systems were compared (Poley et al., 2004)




Mobile air-treatment unit that uses nonthermal-plasma reactors (HAIs)

Definition
A portable device utilizing nonthermal-plasma reactors to destroy microorganisms and electrostatically capture particles and molecular residues for the purpose of reducing airborne bioburden in high-risk areas (Bergeron et al., 2007).



Metrics

- On versus off; presence/absence (Bergeron et al., 2007)



Measurement Method

Research manipulation/Site inspection
- In an operating room with volume of 118 m3, airborne concentration was measured when the air treatment was turned on versus off; in a hematology unit, airborne fugal level in one room with the unit was compared to the airborne fungal level in the control room (Bergeron et al., 2007)




Music (Staff efficiency)

Definition

The art of arranging sounds in time so as to produce a continuous, unified, and evocative composition, as through melody, harmony, rhythm, and timbre (The Free Dictionary).



Metrics

- Type of music (activating music, deactivating music, no music) (Miskovic, et al, 2008); (rock music, classic, no music) (Sanderson et al., 2005)



Measurement Method

Experimental manipulation
- Music played on a computer with a constant volume of 35 dB (Miskovic et al., 2008)




Noise (Medical errors, Patient falls, Patient satisfaction, Staff efficiency, Staff satisfaction)

Definition

Auditory stimulus, such as a change in loudness, bearing no informational relationship to the presence or completion of the task. Sound: a change in loudness bearing some informational relationship with the task at hand (Flynn, et al, 1996).
A sound that is loud, unpleasant, unexpected, or undesired (The Free Dictionary).



Metrics
- Equivalent sound level (Leq) per half hour (Flynn et al., 1996); Equivalent sound pressure level (Laeq) (weighted average sound pressure level in dBA, constant noise level that would result in the same total sound energy being produced over a given period) (Hagerman et al., 2005; Morrison, et al, 2003); minimum and maximum sound level (Morrison et al., 2003)
- Reverberation time (time needed for the sound pressure level to decrease by 60 dB) measured in central areas and two patient rooms in the unit (Hagerman et al., 2005)
- Auditory events (alarm, telephone, etc.) (Morrison et al., 2003); Number of unpredictable/controllable/ uncontrollable sounds per minute (Flynn et al., 1996)
- Perception of noise (Applebaum et al., 2010)
- Alarms and overhead paging heard frequently, infrequently, never used (Calkins et al., 2011)
- Noise versus quiet conditions (Moorthy et al., 2003)



Measurement Method

Acoustic measurement
- Sound levels were continuously recorded in decibels (A scale) by a noise-logging dosimeter (Quest Electronics Noise-Logging Dosimeter, model M28-12) located at a 70 degree angle above the main prescription-filling area; the Leq was calculated for each half hour using the methods described by Taylor & Lipscomb (1978) for analyzing decibel levels that change over time (Flynn et al., 1996)
- Sound pressure levels recorded continuously by a Quest Advanced 1900 precision integrating logging sound level meter (Morrison et al., 2003)
- Acoustic measurement by a third-party company (Hagerman et al., 2005)


Videotape recording
- Two video cameras placed in inconspicuous locations recorded ambient sounds. The videotapes were synchronized with the time that each patient’s prescription set was being filled in order to determine which sounds affected performance (Flynn et al., 1996).


Questionnaire survey
- Items about perceived noise in M. D. Anderson Patient Contact Survey (Applebaum et al., 2010)


Environmental inspection/audit
- Environmental inspection performed by hospital staff using the Falls Environment Evaluation Tool (FEET) (Calkins et al., 2011)


Experimental manipulation
- Operating theatre background noise at 80 to 85 dB (Moorthy et al., 2003)




Nursing station, layout – decentralized, centralized (Patient falls, Staff efficiency)

Definition

Spatial arrangement of nurse work stations in a nursing unit (Dutta, 2008; Gurascio-Howard & Malloch, 2007; Hendrich et al., 2004).



Metrics

- Types: decentralized versus centralized (Dutta, 2008; Gurascio-Howard & Malloch, 2007; Hendrich et al., 2004)



Measurement Method

Design manipulation
- Environmental changes implemented during a nursing unit renovation (Hendrich et al., 2004)
- New unit with 9 decentralized nursing stations versus old unit with 2 centralized nursing stations (Dutta, 2008)
- Centralized nurse station design (one centralized station in unit) versus decentralized nurse station design (12 alcoves near patient rooms) (Gurascio-Howard & Malloch, 2007)
- Two units in each of three hospitals: one with a centralized nursing station design and the other with a decentralized nursing station design (Zborowsky et al., 2010)




Nursing unit shape/layout (Staff efficiency)

Definition

Spatial arrangement of patient care rooms and nursing stations in nursing units (Donahue, 2009; Shepley, & Davies, 2003; Trites et al., 1970).



Metrics

- Type of unit design: pod design; circular, rectangular; racetrack (Donahue, 2009; Shepley, & Davies, 2003; Trites et al., 1970)
- Linear integration (space syntax) (Hendrich et al., 2009).



Measurement Method

Design manipulation
- Pod design (a nursing unit was divided into four pods, each covered 100 feet, two per hallway. Each served eight rooms and was staffed by two RNs) versus a racetrack design (two, 200-foot parallel hallways, with rooms totaling 20 beds along one hallway and 18 beds along the other; patient rooms on the outer sides, a central nursing station, utility room, and patient kitchen between hallways; three pathways connect the long hallways). (Donahue, 2009)
- Dense radial configuration (circular design with patient rooms radiating around the circumference and a nurse station at the center, 10 beds, 8,100 SF, 2 nurses, carpeted, with low-volume radio) versus double-corridor rectangular/racetrack (nurse station/support space in the core, patient rooms on the perimeter wall, 24 beds, 18,500 SF, 5-10 nurses, resilient flooring) (Shepley, & Davies, 2003)
- 12 units, three types of layout, four units in each type: radial, single-corridor rectangular, double-corridor rectangular (Trites et al., 1970)

Measurement using architectural drawings and computer software
- Linear integration (a measure of the centrality of a space with respect to the entire layout). The integration of a space such as a patient room is computed by mapping the layout of the space onto a unique network of straight lines representing potential movement paths through it. Each space then maps onto one or more individual lines that pass through it; distances between spaces are described as the number of intermediate lines between them (Hendrich et al., 2009).




Patient bathroom design (Patient falls)

Definition

Architectural and interior design of bathrooms containing bath and toilet facilities for patients (Calkins et al., 2011).



Metrics

- Private versus shared or no bathroom; open versus closed door; 18” space on the opening side of bathroom door versus no space; bathroom located on footwall versus headwall; toilet on side wall versus across from entrance; two bars on both sides of toilet in bathroom, one bar, no bar (Calkins et al., 2011)



Measurement Method

Environmental inspection/audit

- Environmental inspection performed by hospital staff using the Falls Environment Evaluation Tool (FEET) (Calkins et al., 2011)




Patient room layout (Patient falls, Staff efficiency)

Definition

Spatial arrangement of architectural elements and equipment in patient rooms (Calkins et al., 2011; Pati et al., 2010).



Metrics

- Designated family space versus no designated family space (Calkins et al., 2011)
- Direction of approach to the patient (right-handed, left-handed, and neutral-handed configurations)
- The presence or absence and location of an intravenous (IV) line to the patient, using a mobile pole (IV pole on patient’s left, on patient’s right, and no-IV pole) (Pati et al., 2010)



Measurement Method

Environmental inspection/audit
- Environmental inspection performed by hospital staff using the Falls Environment Evaluation Tool (FEET) (Calkins et al, 2011)



Experimental manipulation
- Nine experimental conditions defined by three directions of approach to the patient and three conditions of IV pole location (Pati et al., 2010)




Patient room occupancy (HAIs, Patient satisfaction, Staff efficiency, Staff satisfaction)

Definition

The number of patients per patient room—one (single room, private room), two (double room), four (multi-bed open bays) (Ben-Abraham et al., 2002; Nguyen Thi, Briancon, Empereur, & Guillemin, 2002; Shepley, Harris, & White, 2008).



Metrics

- Single versus double or multiple occupancy room (Ben-Abraham et al., 2002);
Single family room versus open bay (Shepley, Harris, & White, 2008);
Single room versus 2 or 3 patients per room (Nguyen Thi, Briancon, Empereur, & Guillemin, 2002); Double room versus six-bed room (Soufi et al., 2010);
New open NICU versus old unit with 1-5 bed patients rooms (Shepley, 2002);
Proportion of beds in single rooms (Gardner et al., 1973)



Measurement Method

Design manipulation
- Conversion of an open bay unit to a single-room unit with separated sinks (Ben-Abraham et al., 2002)
- Comparison between three types of patient spaces: single rooms from an all-single-room NICU, single rooms and open bays from another NICU (Shepley, Harris, & White, 2008)


Site inspection
- The study wards were divided into two groups based on the percentage of beds in single rooms <40% versus >85% (Gardner et al., 1973)



Existing data from medical or administrative records
- Health characteristics including admission room (double/common) were collected at admission (Soufi et al., 2010)
- Old NICU: six rooms for 1-5 beds each versus new, remodeled NICU: open unit (Shepley, 2002)




Pharmacy equipment (Staff efficiency)

Definition

Fixtures and equipment used in the pharmacy area for the purpose of preparing and distributing medications (Lin et al., 1988).



Metrics

Pharmacy equipment type
- Baker drug counter, Systamodule pharmacy fixture, exiting equipment (Lin et al., 1988)



Measurement Method

Experimental manipulation
- Simulated experiments were conducted in four conditions: baseline—existing layout, Baker drug counter, Systamodule pharmacy fixture, both Baker drug counter and Systamodule pharmacy fixture (Lin et al., 2009)




Physical configuration of drug stock shelves (Staff efficiency)

Definition

Spatial arrangement of drug items including the amount of space between drug items on shelves (Flynn et al.,, 2002).



Metrics

- Separation and space between items versus tightly packed items on shelves (Flynn et al.,, 2002)



Measurement Method

Environmental inspection
- A pharmacy's drug stock was classified into one of two systems: stocked with space between items or tightly packed onto shelves (Flynn et al., 2002)




Physical proximity (HAIs)

Definition

A risk factor of nosocomial infection. A patient is considered to be in physical proximity when he/she is a roommate or neighbor of a patient with an infectious disease, or when he/she stays in the room after the patient with the infectious disease has left (Chang & Nelson, 2000).



Metrics

- Yes/no, whether or not a patient was roommate or neighbor of a patient with diarrhea, or stayed in the room after the patient with diarrhea left (Chang & Nelson, 2000)



Measurement Method

Mapping patient rooms
- With medical records data, determine whether or not a patient was a roommate or neighbor of a patient with diarrhea, or stayed in the room after the patient with diarrhea left (Chang & Nelson, 2000)




Positive distractions (Patient satisfaction, Patient waiting)

Definition
A set of environmental features or conditions that have been found by research to effectively reduce stress. These features or conditions include nature and certain types of music, companion animals, laughter or comedy, and certain types of art (Ulrich, 1991).



Metrics

- Yes/no, before/after; Art intervention (Nanda, 2010); Visual-auditory stimuli presented on a plasma TV (Pati & Nanda, 2011)



Measurement Method

Design and experimental manipulation
- Art intervention included plasma TV screens showing looped video of nature scene photos, still nature photographs printed on canvas, window films with garden scenes and cloud patterns (Nanda, 2010)
- Five distraction conditions as defined by types of visual and audio stimuli—slide show of nature images, virtual Ambient Art, natural aquarium, and accompanying audio (Pati & Nanda, 2011)
- 42x52 photographic quality mural of a mountain stream in a spring meadow, mounted from the ceiling at bedside so patients could view it supine, nature sounds played with a portable tape recorder (Diette et al., 2003)
- Classical music and home-made movie (mainly scenic views) provided by an Eyetrek system (Olympus, Japan) (Lee et al., 2004)





Rapid assessment clinic/pod/zone (Patient waiting)

Definition

An ED area for quick clinician assessment and procedures on patients whose disposal is readily apparent for whom required interventions can be quickly undertaken, and for problems that do not require prolonged assessment or decision-making. Generally adapted from existing ED space, it is a novel intervention for reducing ED waiting time (Ardagh et al., 2002; Bullard et al., 2011).



Metrics

- RAC versus no RAC (Ardagh et al., 2002; Bullard et al., 2008)



Measurement Method

Experimental manipulation

- RAC operated in odd weeks and did not operate in even weeks during the study period (Ardagh et al., 2002)
- ED spaces were converted to RAP (Bullard et al., 2008)




Subfloor (Patient falls)

Definition

Rough floor serving as a base under a finished floor (Simpson et al., 2004)



Metrics

- Type: wood versus concrete (Simpson et al., 2004)



Measurement Method

Environmental inspection/audit
- Existing subfloor materials were examined through environmental inspection (Simpson et al., 2004)




Surface cleaning—cleaning, disinfection, sterilization (HAIs)

Definition

Cleaning: removal of visible soil and organic contamination from a device or surface, using either the physical action of scrubbing with a surfactant or detergent and water, or an energy-based process such as ultrasonic cleaners with appropriate chemical agents; thorough cleaning is an important step before high-level disinfection and sterilization (Sehulster et al., 2004).


Disinfection: compared to sterilization, a less lethal process of microbial inactivation that eliminates virtually all recognized pathogenic microorganisms but may not eliminate all microbial forms (e.g., bacterial spores) (Sehulster et al., 2004).
Sterilization: use of a physical or chemical procedure to destroy all microbial life, including large numbers of highly-resistant bacterial endospores (Sehulster et al., 2004).



Metrics

- Type of cleaning processes and products (Carling et al., 2006)



Measurement Method

Research Manipulation
- Before and after the intervention to improve environmental cleaning—a structured, multidisciplinary educational intervention was developed for the environmental services staff of participating hospitals. The role of the staff in infection prevention and safety improvement within the hospital was explained, and expectations with respect to cleaning HTOs were defined (Carling et al., 2006).




Ultraviolet germicidal irradiation (HAIs)

Definition

Use of ultraviolet radiation to kill or inactivate microorganisms (Sehulster et al., 2004).



Metrics

- On versus off (McDevitt et al., 2008)



Measurement Method

Research manipulation
- Testing of the effectiveness of upper room UVGI in a simulated real world environment in an experimental chamber (McDevitt et al., 2008)




Ventilation grilles, location of (HAIs)

Definition

Arrangement of ventilation grilles on ceilings and walls (Beggs et al., 2008).



Metrics

- Ceiling versus wall ventilation;
High versus low (Beggs et al., 2008)



Measurement Method

Research manipulation
- Various ventilation regimes set up in computer simulation using Fluent 6.2 CFD software (ANSYS, Canonsburg, PA) with an unstructured tetrahedral grid containing approximately 540,000 cells. A standard k-e turbulence model with enhanced wall treatment was used, and a no-slip condition was applied at the walls (Beggs et al., 2008).




Ventilation, natural (HAIs)

Definition

Movement of outdoor air into a space through intentionally provided openings such as windows, doors, or non-powered ventilators) (Sehulster et al., 2004).



Metrics

- Natural versus mechanical ventilation (Escombe et al., 2007)



Measurement Method

Site inspection
- 70 naturally ventilated clinical rooms where infectious patients are likely to be encountered were compared with 12 mechanically ventilated, negative-pressure respiratory isolation rooms built post-2000 (Escombe et al., 2007)




Ventilation rate (HAIs)

Definition

The rate at which air enters and leaves a building, space, or room (EPA, n.d.).



Metrics

- Air changes per hour (ACH)
- Cubic feet per minute (CFM)
- Cubic meter per hour (absolute ventilation rate) (Escombe et al., 2007)



Measurement Method

Tracer gas concentration decay technique
- With all windows and doors closed, carbon dioxide (CO2) was released and mixed well with room air using large fans to create a spatially uniform CO2 concentration in the room. CO2 concentrations were measured throughout the room at 1-minute intervals using a centrally located infrared gas analyzer. ACH were calculated as the gradient of the straight line through the natural logarithm of CO2 concentration plotted against time in hours (Escombe et al., 2007; Menzies et al., 2000)




Wireless technology (Staff efficiency)

Definition

Technology enabling the transfer of information over a distance without the use of electrical conductors or wires (Guarascio-Howard, 2011; O'Connor et al., 2009).



Metrics

Communication system type
- The addition of a wireless device for nurse communication with display and audio versus traditional communication infrastructure using nurse call system, telephones, health unit coordinator (HUC) stations (Guarascio-Howard, 2011)
- Wireless e-mail over a GSM cellular network using handheld devices versus baseline (receive-only numeric pagers, overhead paging, physical searches for staff, handwritten messages left in or near patient charts, and e-mail accessed by computers) (O'Connor et al., 2009)



Measurement Method

Design manipulation
- A wireless device was added to the existing communication system to help nurses receive team communications and alarms (Guarascio-Howard, 2011)
- The installation of a wireless e-mail system using a GSM cellular network and handheld devices (O'Connor et al., 2009)




Workroom layout (Staff efficiency)

Definition

Spatial arrangement of equipment in a workroom (Lu & Hignett, 2009).



Metrics

- Spatial layout of soiled workroom (Lu & Hignett, 2009)



Measurement Method

Measurement on architectural drawings
- Examination of the location of equipment in floor plans (Lu & Hignett, 2009)





V. Healthcare Outcome Measures

All healthcare outcome measures found during the exploration of the seven high-priority topics discussed in this report are listed in alphabetical order in Table 4. Each identified outcome is accompanied by a definition and a summary of the metrics and methods used to measure that outcome.

Table 4. Healthcare outcome measures (full table shown in PDF download)


Adverse drug event (ADE) (Medical errors)

Definition

Harm caused by a drug or the use of a drug (Nebeker, Barach, & Samore, 2004).
Potential drug event defined as dispensing errors that can harm patients if not intercepted before medication administration (Poon et al., 2006).



Metrics
- Number of ADEs per 1,000 patient days;
percentage of prescriptions involved in potential ADEs divided by the total number of prescriptions (King, Paice, Rangrej, Forestell, & Swartz, 2003; Poon et al., 2006)



Measurement Method

Physician review of error reports
- Two physicians accessed the medication error database and reviewed all original incident reports. Severity was reclassified based on patient impact as an ADE, potential ADE, or other. (King, Paice, Rangrej, Forestell, & Swartz, 2003)
- Each of two board-certified internists independently reviewed and rated the severity of each dispensing error by using an explicit set of criteria. Each physician-reviewer determined whether the patient could have had an injury if the dispensing error had reached the patient, defined errors that could harm patients as potential ADEs, and classified potential ADEs as significant, serious, and life-threatening (Poon et al., 2006)




Anxiety (Patient satisfaction)

Definition

State anxiety: reflects a transitory emotional state or condition of the human organism that is characterized by subjective, consciously perceived feelings of tension and apprehension and heightened autonomic nervous system activity.
Trait anxiety: denotes relatively stable individual differences in anxiety proneness; refers to a general tendency to respond with anxiety to perceived threats in the environment (Spielberger, Gorsuch, and Lushene, 1970).



Metrics

- The Spielberger State-Trait Anxiety Inventory (S-STAI) score - the summation or average of items (Diette et al., 2003; Rice, Ingram, & Mizan, 2008; Routhieaux & Tansik, 1997)



Measurement Method

Questionnaire survey
- Six-item short version of the state anxiety measure (calm, tense, upset, relaxed, content, worried) from the Spielberger State-Trait Anxiety Inventory was included in a questionnaire completed by a patient twice - while waiting to begin the procedure and the second day following the procedure (Diette et al., 2003)




Bacterial growth (HAIs)

Definition

An increase in the amount of bacteria on surfaces (Lankford et al., 2006).



Metrics

- Confluent growth (CG, bacterial growth so heavy that individual colonies are not recognized for counting), no confluent growth (NCG, 1-388 cfus), no growth (NG) (Lankford et al., 2006)



Measurement Method

Surface culture/biology analysis
- The cultures for VRE and PSAE were performed using culture impression plates (Remel, Lenexa, KS) containing tryptic soy agar plus 5% sheep blood. For each surface tested, approximately 10 cm2 was touched 5 times with culture impression plates to ensure that the inoculated area was sampled. All plates were incubated at 35˚ C in ambient air and evaluated at 48 hours to determine the presence of VRE or PSAE. Bacterial growth on culture impression plates was quantified and organisms identified to the species level to confirm that the bacteria that were inoculated onto the surfaces were the bacteria recovered. (Lankford et al., 2006)




Bioaerosol concentration (HAIs)

Definition

The amount of airborne particles that are biological in origin (Bergeron et al., 2003).



Metrics

- cfu (colony-forming unit)/m3 (Bergeron et al., 2003)



Measurement Method

Air sampling using biocollector and biology analysis
- Concentrations of airborne biological particles were determined with biocollectors (MAS 100; Merck) from a height of 1 meter above the floor and operating at 100 L/min for 5 minutes. Petri dishes containing Sabouraud culture media were used for fungal analysis, and standard plate count agar dishes were used to evaluate the total mesophilic flora. Fungal cultures were incubated at 27˚ C and the number of colony-forming units was determined on days 3, 5, and 7 (Bergeron et al., 2003).


Computational fluid dynamics [CFD] study
- Fluent 6.2 CFD software (ANSYS, Canonsburg, PA) with an unstructured tetrahedral grid containing approximately 540,000 cells was used to estimate bioaerosol concentration in various simulated conditions (Beggs et al., 2008)




Burnout (Staff satisfaction)

Definition

A prolonged psychological response to chronic emotional and interpersonal stressors on the job and defined by three dimensions –emotional exhaustion (EE), depersonalization (D), and low personal accomplishment (PA). EE refers to feelings of being overextended and depleted of emotional and physical resources. D refers to a negative, callous, or excessively detached response to various aspects of the job. PA refers to feelings of incompetence and a lack of achievement and productivity at work (Alimoglu & Donmez, 2005). -



Metrics

Self-reported burnout scores (Alimoglu & Donmez, 2005)



Measurement Method

Questionnaire survey
- Maslach Burnout Inventory (22 items in 3 subscales 'emotional exhaustion', 'depersonalization', 'personal accomplishment', 5-point scale 0 never to 4 always, [Maslach & Jackson, 1996], Turkey translation [Ergin, 1992]) (Alimoglu & Donmez, 2005; Tyson et al., 2002)




Circadian misalignment (Staff efficiency)

Definition

A mismatch between an individual’s desired bedtime and the timing of his/her circadian system. Often observed among shift workers and individuals suffering from jet-lag. Usually occurs when individuals attempt to initiate sleep at sub-optimal times during their circadian cycles and, consequently, experience sleep disturbances (Jean-Louis et al., 2008).



Metrics

- DLMO (dim light melatonin onset) based on melatonin level obtained through saliva sampling and radioimmunoassay analysis
- Temperature minimum (Tmin)
- Amount of re-entrainment (Crowley et al., 2003)



Measurement Method

Saliva sampling and radioimmunoassay analysis
- Saliva sampling and radioimmunoassay analysis to determine DLMO, Tmin (DLMO + 7 hr), and amount of re-entrainment (not re-entrained [Tmin before the daytime dark/sleep period], partially re-entrained [Tmin during the first half of dark/sleep], or completely re-entrained [Tmin during the second half of dark/sleep]) (Crowley et al., 2003)




Cleaning, thoroughness of terminal cleaning (HAIs)

Definition
The amount of high-risk objects cleaned after terminal cleanings (cleanings after discharge) (Carling et al., 2006).



Metrics

- Percentage of objects cleaned after terminal cleanings (Carling et al., 2006)



Measurement Method

Fluorescent marker
- Objects marked with targeting solutions which fluoresces under black light (Carling et al., 2006)




Endotoxin concentration (HAIs)

Definition

The amount of toxins associated with certain bacteria (Menzies et al., 2003).



Metrics

- eu/m3, eu/coupon (Menzies et al., 2003)



Measurement Method

Air sampling
- Airborne samples for endotoxin measurements were captured on an isopore polycarbonate membrane (Millipore, Biccerica, MA, UK) backed by a glass fiber pad (Millipore) with a volumetric air pump (Menzies et al., 2003)




Falls, patient (Patient falls)

Definition

There is no universally accepted definition of patient falls. The following definitions are used in literature and practice:
• An unplanned descent to the floor (or extension of the floor, e.g., trash can or other equipment) with or without injury to the patient, and occurring on an eligible reporting nursing unit. All types of falls are included, whether they result from physiological reasons (fainting) or environmental reasons (slippery floor).
• Includes assisted falls which occur when a staff member attempts to minimize the impact of a patient’s fall (NDNQI, 2005).
• Unintentionally coming to rest on the ground, floor, or other lower level regardless of the cause (Becker et al., 2007).
• A sudden, unanticipated change (downward) in body position with or without physical injury (Brandis, 1999).
• An accidental collapse to the ground leading to the completion of an accident report form by nursing staff (Donald, Pitt, Armstrong, & Shuttleworth, 2000).
• A sudden, unexpected descent from a standing, sitting, or horizontal position, including slipping from a chair to the floor, a patient found on the floor, and an assisted fall (Hitcho et al., 2004).



Metrics

Prevalence:
- Number of patients injured per 1,000 admissions (Brandis, 1999)
- Number of injuries per 1,000 patient days (Capezuti et al., 1998)



Severity
- Percentage of falls resulting in injuries of different severity levels (Capezuti et al., 1998; Hanger et al., 1999; Schwendimann et al., 2006; Van Leeuwen et al., 2001)
- Number of hip fractures per 100 falls (Simpson et al., 2004)



Measurement Method

Incidence/accident reporting system as described above
- Nursing home incidence report (Capezuti, 2002)
- Routine data collection using incident forms (Hanger et al., 1999)
- Falls register of nursing home (Simpson et al., 2004)



Radiograph review
- Radiograph review of hip fractures (Simpson et al., 2004)




Hand hygiene compliance (HAIs)

Definition

Adherence with recommendations/guidelines of hand hygiene in healthcare settings (Larson et al., 2005).



Metrics

- Percentage of actual hand hygiene divided by hand hygiene opportunities (Swoboda et al., 2004);
- Number of hand touches with new gloves/cleaned hands, used gloves, and no gloves/uncleaned hands per neonate per shift (Cohen et al., 2003);
- Number of incidences of hand hygiene per patient per hour;
number of incidences of hand hygiene before patient contact per hour (Larson et al., 2005).



Measurement Method

Observation
- Hand hygiene behavior of staff members whose activities could be directly observed was recorded. At regular intervals, an observer assumed a position that allowed direct observation of the maximum number of contacts between staff members and patients. On the basis of the 8 indications for hand hygiene listed in the recommendations of the CDC hand hygiene guideline, the observer noted when a hand hygiene episode was indicated and whether the staff member used soap or the alcohol sanitizer (Larson et al., 2005)


Automatic electronic system
- The system consisted of electronic beam breakers or motion detectors placed at the threshold of each room to monitor entry and exit of personnel, both staff and visitors. The toilets, sinks, soap, and waterless antiseptic dispensers were fitted with sensors and switches. When a sensor was activated either by the toilet being flushed, soap or foam being dispensed, or water flowing through the tap, a radio signal was sent to the computer indicating that the switch was opened or closed (Swoboda et al., 2004).




Job satisfaction (Staff satisfaction)

Definition

A pleasurable or positive emotional state in an individual, resulting from the appraisal of that person’s job or job experiences (Berry & Parish, 2008).



Metrics

- Self-reported job satisfaction scores (Alimoglu & Donmez, 2005; Applebaum et al., 2010; Berry & Parish, 2008; Djukic et al., 2010; Folkins et al., 1977; Harris et al., 2006; Jason et al., 2002; Shepley et al., 2008; Tyson et al., 2002; Varni et al., 2004 )



Measurement Method

Questionnaire survey

- Job Satisfaction Scale (JSS), a 5-item subscale from the Nurse Stress Index by Harris, Hingley, and Cooper (1988) (Harris et al., 2006; Shepley et al., 2008)
- Work Satisfaction Questionnaire (14 items, 5-point scale from 1 never satisfies me to 5 highly satisfies me, [Hackman & Oldham, 1980] (Alimoglu & Donmez, 2005)
- One item in a staff questionnaire (Berry & Parish, 2008)
- Nurses’ Intent to Stay Questionnaire (NISQ) (Job satisfaction 7 items, turnover intent 4 items (Applebaum et al., 2010)
- A five-item Likert type job satisfaction scale with response category varying among items and rescaled to a 7-point scale (Djukic et al., 2010)
- Minnesota Satisfaction Questionnaire (Weiss, Dawis, England, & Lofquist, 1967)
- GM Faces Scale (Kunin, 1955), a simple, well-validated measure including seven drawings of faces with facial expressions ranging from a frown to a smile (Folkins et al., 1977)
- Rehabilitation Job Satisfaction Inventory (Wright & Terrian, 1987) including 15 items, agreement with the statement on a 5-point scale, the final score of job satisfaction was calculated from 4 items (satisfied with job, plan on staying, the best compared to past jobs, look forward to going to work) (Jason et al., 2002)
- Job Satisfaction (Warr et al., 1979), satisfaction with extrinsic and intrinsic features of the job as well as overall job satisfaction, 16 items (Tyson et al., 2002)
- PedQL Staff Satisfaction Coworker Module (Varni et al., 2004)




Length of stay (HAIs)

Definition

Period of time during which a patient is confined to a hospital or other health facility (NLM MeSH).



Metrics

- Days (Ben-Abraham et al., 2002)



Measurement Method

Medical charts

- Review of medical records (Ben-Abraham et al., 2002)




Medication administration procedural failure (Medical errors)

Definition
Failure to comply with specific medication administration procedures, including failure to read a medication label, failure to check patient’s identification, temporary storage of medication in an unsecured environment, failure to record on a medication chart, use of a nonaseptic technique, failure to check pulse/blood pressure/blood glucose level (when applicable), failure of 2 nurses to check preparation of a dangerous drug or IV medication (Moorthy et al., 2003).



Metrics

- Percentage of medications with procedural failures (Westbrook et al., 2010).



Measurement Method

Direct observation

- Observers (registered nurses and physicians) used a structured observational tool on a PDA to record nursing procedures related to medication administration (Westbrook et al., 2010)




Medication error (Medical errors)

Definition

Error that occurs while ordering, transcribing, dispensing, administering, or monitoring medications, irrespective of the outcome (Kaushal & Bates, 2001).



Metrics

- Number of dispensing errors per pharmacist per hour Flynn et al., 1999)
- Percentage of prescriptions involved in errors divided by the total number of prescriptions (Buchanan et al., 1991; Flynn et al., 1999; Westbrook et al., 2010)
- Percentage of prescriptions with near-errors corrected and corrected staff (Flynn et al., 2002)
- Number of nurse medication errors per month (Booker & Roseman, 1995)
- Severity of error: five severity rating levels (1 - little or no effect on patient, 2 - likely to lead to increase in level of care, 3 - likely to lead to permanent reduction in bodily functioning, 4 - likely to lead to a major permanent loss of function, 5 - likely to lead to death); two categories (major errors - levels 4-5, minor errors - levels 1-3) (Westbrook et al., 2010)



Measurement Method

Direct observation & expert evaluation

- Filled prescriptions evaluated by researcher to detect deviations from physician's orders (Flynn et al., 1999; Flynn et al., 2002)
- After the routine final check by a pharmacist but before the drug was dispensed to the patient, every prescription was reviewed for content by the observer (Buchanan et al., 1991)
- A trained research pharmacist-observer inspected the medications that had already undergone the usual 3-step dispensing process to look for dispensing errors and classify the error types (Poon et al., 2006)
- The direct observation method consists of an observer witnessing the administration of medicines to patients by the nurse. The observer checks the administration of each dose by the nurse with the help of an exact copy of the medication administration record. The observer does not interfere if an error is observed. If the observer estimated that the patient's safety is compromised, a warning is given to the nurse before the medicine is actually taken by the patient (Ros & de Vreeze-Wesselink, 2009).
- Observers (registered nurses and physicians) used a structured observational tool on a PDA to record details of medication administrated and compare the data with patients' medication charts to determine whether the medication administrated differed from what was ordered (Westbrook et al., 2010).


Adverse event reporting system
- A passive reporting system. The nurse and physician involved in a medication error complete an incident report and document the incident. The severity of patient harm is rated as none, mild, moderate, or severe. Medication errors are then sent to the pharmacy department and entered into a spreadsheet database (King, Paice, Rangrej, Forestell, & Swartz, 2003).
- The annual medication error index was measured by the hospital’s standard system for reporting adverse events (Hendrich, Fay, & Sorrells, 2004).
- Errors were documented on a standard error reporting form completed by the nurse committing the error and/or staff discovering the error (Booker & Roseman, 1995).




Medication processing time (Staff efficiency)

Definition

Amount of time from when a prescriber orders medication, to the pharmacy receiving the order, to the pharmacist completing the order (Wietholter et al., 2009).



Metrics

- Prescription filling time (Lin et al., 1988; Wietholter et al., 2009)

- Pharmacist travel distance for filling prescriptions (Lin et al., 1988)



Measurement Method

Computer simulation
- Prescription filling time measured by computer simulation using a predetermined motion time system (PMT systems), standards determined through consultation with supervising pharmacist and videotaping of pharmacist work (Lin et al., 1988)


Medical records
- Review of medication records (Wietholter et al., 2009)


Measurement on architectural drawings
- Pharmacist travel distance for filling prescriptions was measured and calculated using architectural drawings (Lin et al., 1988)




Mortality (HAIs)

Definition

The rate of death from any cause in hospitalized populations (NLM MeSH).



Metrics

- Percentage of deaths/total number of patients (McManus et al., 1992)



Measurement Methods

Actual: Medical charts;
Expected: Estimated using an equation based on patient characteristics e.g., burn size, age (McManus et al, 1992)




Nosocomial infection (HAIs)

Definition

An infection that is acquired in a hospital as a result of medical care; also called hospital-acquired infection (Sehulster et al., 2004).



Metrics

- Number of NIs per 100 admits/discharges (Modol et al., 2007);

Number of NIs per 1,000 patient days (Swoboda et al., 2004);
Number of hospital-acquired infections per patient (Ben-Abraham et al., 2002);
- Risk of infection - Percentage of susceptible patients infected (Escombe et al., 2007)



Measurement Methods

Medical charts
- Infection data were prospectively collected and stored in a computerized database. All infections and antibiotic uses were reviewed by the facility's Infection Control Committee based on pre-existing criteria (McManus et al., 1992)
- Physician evaluation according to CDC criteria based on test results of respiratory, serum, or urinary samples (Modol et al., 2007)


Model estimation
- Estimated by Wells-Riley model of airborne infection (Escombe et al., 2007)




Nurse response to patient calls (Staff efficiency)

Definition

Amount of time from when a nurse call button is pressed to when the nurse responds to the call (Guarascio-Howard, 2011)



Metrics
- Response time to patient calls (minute) (Guarascio-Howard, 2011)
- Patient ratings of nurse response to patient calls (Donahue, 2009)



Measurement Methods

Observation
- Shadowing of nursing activity (Guarascio-Howard, 2011)


Questionnaire survey
- Press Ganey score on nurses’ promptness in response to patient calls (Donahue, 2009)




Particulate level (HAIs)

Definition
Amount of particles in the air (Bergeron et al., 2003).



Metrics

- Number of particles/m3 (Bergeron et al., 2003).



Measurement Methods

Air Sampling using particle counter
- Airborne particle counts were measured over a 1-minute interval with a 6-channel, light-scattering particle counter (CI-500; Climet), operating at a flow rate of 1.7 cubic meters per hour and placed 1.2 meters above floor level (Bergeron et al., 2003)




Patient colonization (HAIs)

Definition

Isolation of a targeted pathogen (organism) from the patient (e.g., sputum, wound surface, urine, stool) (McManus et al., 1992).



Metrics

- Percentage of patients colonized;
- Postburn time delay in colonization (McManus et al., 1992)



Measurement Method

Microbiology surveillance
- Microbiology surveillance was performed for the first 30 days of hospitalization or longer if patients remained in the unit. The surveillance included weekly cultures of sputum, wound surface, urine, and stool. Colonization was defined as isolation of the organism from any site on the body (McManus et al., 1992)




Patient loyalty (Patient satisfaction)

Definition

Patient's long-term commitment to a preferred healthcare service provider; a manifestation of attitudes and actual purchasing behaviors (Hsu, Hsu, & Chiu, 2009)



Metric

- Willingness to recommend or return, ratings of Likert scale (Nguyen Thi et al., 2002; Swan et al., 2003)



Measurement Method

Questionnaire survey
- Two questions in Patient Judgments of Hospital Quality questionnaire (PJHQ) about intention of recommending the hospital or returning (Nguyen Thi et al., 2002)




Perception of physical environment (Staff satisfaction)

Definition

Quality of the physical environment as perceived by healthcare staff members. May include perceptions of environmental aspects such as quality of the patient care area (comfort and privacy afforded to patients and families due to the design of patient areas), safety (degree of hazard for staff and patients related to facility design), pleasantness (ambience of the facility design due to specific design features) (Berry & Parish, 2008).



Metric

- Subjective rating of physical environment (Berry & Parish, 2008; Harris et al., 2006; Shepley et al., 2008)



Measurement Method

Questionnaire survey
- Perception of physical environment (quality of patient areas [4 items], safety [3 items], pleasantness [3 items], quality of workspace [6 items]) (Berry & Parish, 2008)
- Level of agreement with statement regarding the physical environment, 12 questions, 5-point scale, average score (e.g., quiet, private space for family to be alone, atmosphere tense and stressful for staff/family) (Harris et al., 2006; Shepley et al., 2008)




Satisfaction, patient (Patient satisfaction, Patient waiting)

Definition

Degree to which an individual regards a provider’s health care service, product, or the manner in which the service or product is delivered as useful, effective, or beneficial (NLM MeSH).



Metrics

Patient Waiting

- Overall satisfaction with service (Papa et al., 2008; Pruyn & Smidts, 1998)



Patient Satisfaction
- Scores of Likert type scales or subscales calculated (summation or average of items in the each scale/subscale) (e.g., Groff et al., 2008; Janssen et al., 2000 )
- Percentage of "excellent" responses (Becker & Douglass, 2008)
- Percentage of patients who are dissatisfied (Hendrich, Fay & Sorrells, 2004)
- Score of a single question of patient satisfaction (Leather et al., 2003; Lee et al., 2004)



Measurement Method

Questionnaire
- One question in the survey asked for the overall satisfaction level, 5-point Likert scale, excellent - poor (Papa et al., 2008)
- Overall patient satisfaction rated on a 10-point scale (Pruyn & Smidts, 1998)


Patient Satisfaction
Questionnaire survey (see Appendix for a table of questions and subscales in questionnaires found in literature)
- Questionnaires (8 subscales - e.g., information and support, being with family and friends, privacy needs, physical environment) were distributed on the day of delivery and completed after delivery and before discharge (Janssen et al., 2000). A questionnaire including 16 items from a patient judgment system (PJS) developed by the Hospital Corporation of America was distributed to patients before and after the movement to a new unit. Patients completed the questionnaires independently or with help from nurses. The completed questionnaires were collected by nurses (Kline et al., 2007).
- Patients were offered a questionnaire survey when completing their clinic visits and asked to fill out a questionnaire on-site or mail in the completed questionnaire from home. The quality of care index was the average percentage of "excellent" responses to 4 questions related to care, services, and interactions with staff and doctors (Becker & Douglass, 2008)
- Patient Expectation Project standardized tool (Arbor Associates, Inc., Potoskey, MI) measuring how closely patients' experiences meet their expectations (Hendrich, Fay & Sorrells, 2004)
- Satisfaction score on a 10 cm visual analog scale (0 =not satisfied, 10 = very satisfied) (Lee et al., 2004)




Staff travel (Time allocation, travel distance) (Staff efficiency)

Definition

Physical movements (location, time, duration, frequency, activity type) of healthcare staff members (Shepley, 2002; Zborowsky, 2010).



Metrics

- Nursing activity (20 types), location (31), time data, and nurse type were recorded sequentially (Shepley, 2002)
- Frequency and duration of activities (Zborowsky, 2010)
- Nurse walking distance (steps per minute, the ratio of travel distance to unit floor area) (Shepley, 2002)



Measurement Method

Observation
- Observers made rounds of the facility at specific time points and recorded activities. Staff activities were classified in 9 categories (e.g., direct patient care, indirect patient care, nonproductive time), locations in 5 categories (e.g., nurse station, patient room), and 2 other categories (with patient, total not travel) (Trites et al., 1970)
- Behavior mapping (recording staff behaviors, locations, time data) (Shepley, 2002)
- Videotaping using ceiling-mounted cameras received and processed by custom-made software installed on computers (Pati, Cason, Harvey, & Evans, 2010)
- Frequency and duration of activities recorded by a digital timer and visual data charts (Zborowsky, 2010)


Work sampling study with PDAs
- The PDAs were set to vibrate randomly approximately 22 times over a 12-hour period. The nurse then selected her or his location and the most accurate description of the activity being performed (Donahue, 2009)
- A personal digital assistant (PDA) vibrated at random times throughout the work
shift, prompting nurses to select their location and activity at that moment from a predetermined list of options (Hendrich et al., 2009)


Pedometer
- Electronic pedometer attached to the back of staff's belts (Shepley & Davies, 2003; Donahue, 2009)


Indoor positioning system
- An positioning system tracked radio-frequency identification (RFID) badges worn by participating nurses (Hendrich, 2009)


Link analysis
- Link analysis was used to record and analyze movements among components, i.e., nursing staff, equipment/devices, and furniture. Tasks that occupied the most space, areas that had the highest level of activity (to determine the layout and adjacency requirements of equipment and furniture), and areas needing easiest access were identified (Lu, 2009)




Stress, staff (Staff satisfaction)

Definition

A state of mental or bodily tension caused by the imbalance between an individual's environmental demands or perceived demands and the individual’s ability or perceived ability to cope with the environmental demands (Stokols & Montero, 2002).



Metrics

Physiology measures
- Heart rate (average HR [bpm], minimum, maximum HR for every half-hour period, percent of time in tachycardia [HR>100], number of episodes of ectopy [disturbance of the cardiac rhythm]) (Morrison et al., 2003)
- Salivary amylase concentration (units per mL) (Morrison et al., 2003)



Psychology measures
- Self-reported stress and annoyance (Alimoglu & Donmez, 2005; Morrison et al., 2003)



Measurement Method

Electrocardiography (ECG) monitoring
- A portable cassette battery-driven Holter monitor (GE Marquette 8500 series, Milwaukee, WI) (Morrison et al., 2003)
- Salivary hormone analysis
- A citric acid impregnated cellulose sponge, salivary amylase field test kits (Morrison et al., 2003).


Questionnaire survey
- Expanded Nurse Stress Scale (ENSS) by French, Lenton, Walters, and Eyles (2000), 59 items in 9 subscales (Harris et al., 2006; Shepley et al., 2008).
- Specific Rating of Events Scale, nurses rated how stressed or annoyed "right now" on a scale of 0 for "not at all stressful" or "not at all annoyed" to 100 for "most stress possible" or "most annoyance possible" (Morrison et al., 2003)
- Work Related Starin Inventory (18 items about work-related expectations, stress, interpersonal relations, productivity, working habits, interactions between work and family [Revicki et al., 1991], 4 point scale from 1 surely agree to 4 surely disagree (Alimoglu & Donmez, 2005)
- 3 items in a questionnaire developed specifically for the study (Berry & Parish, 2008)




Surface contamination (HAIs)

Definition

Presence of pathogens on inanimate surfaces (Anderson et al., 1982).



Metrics

- Number of microorganisms (cfu) per square inch (Anderson et al., 1982);

- Bacterial community composition (Harris et al., 2010)



Measurement Method

Swab sampling/biology analysis
- Surface swab samples were collected from each flooring type using a surface swab kit (SKC, Eighty Four, PA, USA). DNA from the swab washes was extracted with an Ultraclean Microbial DNA Kit (Mo-Bio, Carlsbad, CA, USA) (Harris et al., 2010).
Generic analysis - denaturing gradient gel electrophoresis (DGGE)
- The DGGE technique is based on the separation of PCR fragments of the same length in a linearly increasing gradient of chemical denaturants. The different fragments melt and, consequently, stop at particular positions in the gel, a transition from helical to partially melted molecule that depends on the base composition of their sequences. The resulting banding pattern represents a profile of the community, and the relative intensity of each band represents the relative abundance of a particular member of the community. Consequently, microbial communities can be quickly analyzed and compared, permitting temporal and spatial analysis within and between communities(Harris et al., 2010)




Surgeon/anesthesiologist performance (Staff efficiency)

Definition

Performance of surgical tasks and anesthesia monitoring tasks (Liu et al., 2009; Miskovic et al., 2008; Sanderson, 2005).



Metrics

Anesthesiologist performance
- Number of anesthesia events detected, event detection time(s), frequency of changes in gaze location (changes/minutes), percentage of time looking toward a location
- Percentage of correct judgments (abnormality judgments: normal, high, low; trend judgments: steady, increasing, decreasing, fluctuating) (Sanderson, 2005)
- Anesthesiologist perception of work efficiency (Liu et al., 2009)



Surgeon performance
- Global task score (the anatomy scores [accuracy of cystic duct and artery clipping] minus the error score [e.g., clipping errors, cutting errors, bleeding], with a minimum score of 0), total task time, instrument travel distances, and surgeons’ heart rate (Miskovic et al., 2008)



Measurement Method

Simulation
- Test scenarios performed on a METI ECS™ (Sarasota, FL) mannequin. Video data were analyzed to determine the onset time of an event (when event symptoms are first visible in the video) and the time of detection (when the participant makes a comment about the event or begins a corrective action). Gaze location was coded using three categories: Anesthesia machine, Patient, and Other (Liu et al., 2009)
- LS500 (Xitact) virtual patient laparoscopy simulator, run by a Pentium PC with a high-resolution thin film transistor (TFT) monitor connected to 2 robotic force feedback devices acting as interfaces for the laparoscopic instruments (Miskovic et al., 2008).
- The surgical task was to move cylindrical pieces of sponge from one disc to another. Surgical performance was measured by the Imperial College Surgical Assessment Device. When motion tracking sensors attached to the dorsum of both hands move in an electromagnetic field generated by the system, the positional data from the trackers gets converted into data on the number of movements and the path length traversed by each hand using specially developed software (Moorthy et al., 2003).
- During simulated monitoring of visual and auditory displays of patients’ vital signs (9 anesthesia test scenarios), participants were asked every 50–70 seconds whether one of five vital signs was abnormal and the trend of its direction. Anesthesia simulator (Advanced Simulation Corporation’s Body TM physiological and pharmacological engine, connected to an interface largely similar to the Body TM Anesthesia Simulator interface) (Sanderson, 2005).


Questionnaire
- Self-reported work efficiency (Liu et al., 2009)




Surgical errors (Medical errors)

Definition

Errors in the performance of surgical procedures. In a laparoscopic task, skill-based errors involved dropped objects and objects placed inaccurately in the disc--either on their side or incompletely within the zone; knowledge-based errors occurred when objects were placed in the wrong zone (Moorthy et al., 2003).



Metrics

- Number of errors in a surgical task (task error score) (Moorthy et al., 2003; Pluyter et al., 2010)



Measurement Method

Surgery simulation system
- Xitact LC 3.0 virtual reality simulator (Xitact SA, Morges, Switzerland). The clip and cut assessed (CCA) task in the Clip and Cut (C&C) module was used. Task errors were recorded by the simulator (Pluyter et al., 2010)




Team communication (Staff efficiency)

Definition

Frequency, formalization, structure, and openness of information exchange between team members (Carmeli, Gelbard, & Goldriech, 2010)



Metrics

- Number of verbal interactions per hour, length of conversations, number of persons involved in one interaction (Dutta, 2008)
- Number of nurse-initiated communications (Guarascio-Howard, 2011)
- Communication type, number, time (Gurascio-Howard & Malloch, 2007)
- Staff perception of communication (Gurascio-Howard & Malloch, 2007; O'Connor et al., 2009)
- Communication between nurse and surgeon (response rate, correct patient ID time, error rate, response time, solution time, communication time, intraoperative case interruptions) (Ortega et al., 2009)



Measurement Method

Observation
- Staff verbal interactions were manually recorded according to predetermined categories for physical location, participant roles, gender and duration of interactions (Dutta, 2008)
- Shadowing of nurses (Gurascio-Howard & Malloch, 2007)
- Direct observation with stop-watch (Ortega et al., 2009)


Audio recording
- Analysis of audio recording of team communication (Gurascio-Howard & Malloch, 2007)


Interview
- Interviews regarding staff perceptions of communication, technology, and teamwork (Gurascio-Howard & Malloch, 2007)


Questionnaire
- Questionnaire, 49 items, developed by interview, focus group, pretesting. Items included: improved speed of communication, improved reliability of communication, less effort required to communicate, improved physician response times to critical issues, etc. 7 point scale (O'Connor et al., 2009).




Transport, patient intra-hospital transport (Medical errors)

Definition

Transport of patients within the hospital (Ulrich & Zhu, 2007)



Metrics

- Number of patient transports between nursing units /month (Hendrich, Fay, & Sorrells, 2004).



Measurement Method

Medical and operational data
- Data collected from Transition System, Inc. (TSI) by Vanderbilt University Medical Center, Nashville, TN (Hendrich, Fay, & Sorrells, 2004).




Tuberculin conversion & reactivity (HAIs)

TB conversion: indurations of 10 mm or greater with an increase of at least 6 mm more than 1 year after a negative result (<10 mm).
TB reactivity: indurations of 10 mm or greater (Menzies et al., 2000).



Metrics

- Ratio (percentage) of healthcare workers with Tuberculin conversion (Menzies et al., 2000);
- Ratio (percentage) of patients/visitors with Tuberculin reactivity (Hutton et al., 1990)



Measurement Method

TB skin test
- Tuberculin conversion is indicated by induration of 10 mm or greater with an increase of at least 6 mm more than 1 year after a negative result (<10 mm) (Menzies et al., 2000)




Turnover intent (Staff satisfaction)

Definition

Employees' inclination to voluntarily leave their organization (Haybatollahi, 2009).



Metrics

- Self-reported turnover intent (Applebaum et al., 2010; Lin et al., 2008)



Measurement Method

Questionnaire survey
- Nurses’ Intent to Stay Questionnaire (NISQ) (turnover intent 4 items) (Applebaum et al., 2010)
- Variables measured on 0-100 scale (Lin et al., 2008)




Waiting behavior, patient (Patient waiting)

Definition

Behaviors that patients exhibit in waiting rooms (Nanda, 2010; Pati & Nanda, 2011).



Metrics

- Percentage of behaviors in the following categories: attention (positive distraction, other artwork, toy, book, wall, ceiling, floor, door, window, furniture, people, themselves), physical behavior (calm, fidgety, fine movement, intense), activity (playing with toys, playing with non-toys, non-play activity/other play), location (out of seat, in seat, parent's lap), social behavior (positive interaction, negative interaction, solitary behavior) (Pati & Nanda, 2011)
- Number of discrete behaviors (getting out of seat, entering waiting room, people pacing, changing seat, aggressive behavior) in three, 5-minute periods every 20 minutes (Nanda, 2010)



Measurement Method

Observation
- Behavioral observations during 20-minute windows over 12 days, snapshot at beginning of each minute, modification of an existing children's observation instrument (Handen, McAuliffe, Janosky, Feldman, & Breaux, 1998) (Pati & Nanda, 2011)
- Systematic observation, behavior mapping (Nanda, 2010)




Waiting time, patient (Patient waiting)

Definition

Period of time from when a patient arrives at a clinic or ED to the time his or her consultation/treatment begins (Dexter, 1999).



Metrics

Actual waiting time
- ED: patient waiting time to be seen by a doctor (minute) (Ardagh et al., 2002), overall ED length of stay (minute) (Ardagh et al., 2002; Bullard et al., 2008), time from triage to bed (Bullard et al., 2008), ED time from bed to physician (Bullard et al., 2008), time from treatment room to physician (Hall et al., 2008)
- Medical office: time spent in waiting room and exam room (Becker & Douglass, 2008)



Perceived waiting time
- Percentage of respondents in categories from 0-5 minutes to more than 30 minutes (Becker & Douglass, 2008)
- Subjective rating from "very short" to "very long" (Papa et al., 2008)



Measurement Method

Medical records
- Data extracted from the ED module of Patient Management System (Ardagh et al., 2002)
- Actual waiting time and LOS were extracted from computerized medical records (Tran et al., 2002)
- Times were recorded by physicians and retrospectively collected from existing database (Hall et al., 2008)


Observation
- Observer was located in waiting area and hallway outside exam rooms. Time from patient entering the practice until called into exam room by staff, and time from patient entering exam room until leaving the exam room (Becker & Douglass, 2008)


Questionnaire
- Patient perception of how long they waited in the waiting area and in the exam room was assessed on the survey (Becker & Douglass, 2008)
- In one question, questionnaire asked patients to rate the wait time on a 4-point scale from very short to very long (Papa et al., 2008)





VI. Using the Glossary

The glossary in this report were developed using evidence-based methodologies for two important reasons – to provide definitions of environmental terms and outcome measures for seven high-priority healthcare outcome topics and to create a standard reference that can be used by researchers, designers and the entire healthcare team.



A comprehensive set of reference tools have been created for the seven healthcare outcome topics:


• Models depicting the environmental terms and outcome measures found for each topic during a literature review (see models in Chapter III. Results)
• Definitions for each environmental term and outcome measure found, along with the metrics and measurement methods used to evaluate the terms and measures (see tables in Chapter IV. Healthcare Environmental Variables and Chapter V. Healthcare Outcome Measures)
• Matrix summarizing the evidence of the relationships between environmental features and outcome measures.
• Article analysis table with summary information about each study used to develop the glossary – sample and study setting, study design, variables examined, metrics used, and results. For the patient satisfaction topic, a summary of the types of questions asked in various patient satisfaction surveys is also provided.



The glossary can be used for:


• Defining environmental terms and outcome measures for research projects
• Developing environmental research studies
• Exploring the high-priority healthcare topics to identify which environmental features have been studied for their impact on healthcare outcomes
• Identifying metrics and measures that have been used to evaluate the impact of specific environmental features
• Beginning a literature review for an evidence-based design research project
• Identifying key environmental features to include in healthcare projects across the facility life-cycle.
• Defining outcome measures to monitor as a component of post-occupancy evaluation and healthcare facility performance improvement projects





VII. Conclusion

Over the past decade, our understanding of the associations between the physical healthcare environment and the outcomes associated with the patient, patient’s family, staff and the care organization has made healthy progress. Once considered a passive backdrop to the process of care delivery, the physical design of the care setting is now regarded as an active contributor to the health and well-being of the environment’s users and a business driver of healthcare organizations.



Challenges remain, however, in reaching an optimal understanding of the complex and interacting factors that characterize the care environment. Factors from multiple domains – e.g., treatment, workflow, processes, cultures, policies, physical environments, and sociological and psychological processes at the individual and group levels – interact in complex ways in care delivery and healing. Improving patient and staff outcomes and reducing care delivery costs requires a greater, more accurate comprehension of these complex interactions as opposed to the traditional focus of healthcare research in individual, narrowly defined domains. The need for better comprehension of these complex processes is even more crucial at a time when the central focus of healthcare is moving away from treating illnesses and toward promoting health.



A lack of common definitions, tools, measures, and metrics pose a fundamental problem in any research endeavor, let alone the physical environment. As our understanding of the physical environment improved over the past decade, it became increasingly clear that further research and meaningful study outcomes) are contingent on having common definitions, tools, and metrics associated with the physical care environment. This glossary project was initiated to address this critical challenge.


An absence of a glossary impacts more than the ability to conduct meaningful, individual research. The lack of a glossary:


• Poses problems in systematic integrative reviews of multiple studies, both quantitative and qualitative
• Creates problems when translating findings to design decisions and when developing design guidelines
• Precludes the development of advanced and more complex theoretical frameworks to capture the interactions between the myriad factors that impact healthcare outcomes; without such frameworks, multi-disciplinary studies might not optimize our understanding of critical phenomena



This glossary project was envisaged in multiple phases. The first phase forms the content of this report and was designed to provide a snapshot of the current state of environmental terms and outcome measures for seven high priority topics. It was not meant to be a comprehensive review of scientific literature. Rather, articles were selected to create a comprehensive list of factors/variables that have been targeted in healthcare environment studies. The objective was to capture in a single document the environmental variables used in healthcare studies, their definitions (conceptual and operational, if provided by the authors), tools and measures used in the studies, and the sources and validation studies associated with such tools and measures, where available.



As underscored in this report, the physical environment has more frequently been measured at the categorical (or nominal) level. Categorical levels of measurement per se do not connote any reduction in the robustness of the studies. Moreover, numerous aspects of the physical environment are amenable only to categorical levels of measurement. The key problem is that higher levels of measurement need to be developed to provide greater analytical power to data analyses. A prerequisite to developing higher levels of measurement is the availability of precise conceptual and operational definitions for the targeted variables.



This is where the glossary project provides a crucial foundation. Future phases of this study will expand the list of terms and definitions in both the healthcare environmental variables and outcome measures. Expanding the glossary will enable researchers to develop more powerful tools and measures and to articulate frameworks that capture the true complexities of the relationship between the built environment and healthcare outcomes.





VIII. Next Steps

Recommended next steps are organized around two major goals: distributing the glossary report and further glossary development.



Distributing the glossary report (November 2011)
Distributing the glossary findings is an important step in the glossary report’s development. This report will be:


• Made available on CHD’s website
• Highlighted in a message to CHD community members
• Shared at key conferences and meetings
• Highlighted in a message to communities that work with healthcare environmental and outcome variables
• Used to develop relationships with other key stakeholder groups, with a goal of persuading them to support and adopt these terms
• Shared with post-occupancy evaluation development teams
Readers will be encouraged to provide feedback and recommendations for glossary revisions and additions using the Ripple database and website.

Further glossary development (November 2011 – October 2012)
• A four-pronged approach is envisioned for the second phase of glossary development: Engage interested, multidisciplinary volunteers to assist in the glossary’s development
• Facilitate additional topic area development in partnership with academic institutions
• Examine additional sources of environmental terms and healthcare outcome measures
• Develop the Ripple database to house the glossary and support its development




IX. Appendix

Tables of article analysis, glossary tables, and matrix of relationships (All appendices are available for download above):


A. Healthcare-associated infections
B. Medical errors
C. Patient falls
D. Patient satisfaction
E. Patient waiting
F. Staff efficiency
G. Staff satisfaction




--
Copyright © 2011 by The Center for Health Design, Inc. All rights reserved. No part of this work covered by the copyright herein may be reproduced by any means or used in any form without written permission of the publisher.

The views and methods expressed by the authors do not necessarily reflect the opinions of The Center for Health Design, or its Board, or staff.

Author(s)
Publication Year
2011
