University of New Mexico, Dental Clinic and Surgery Center

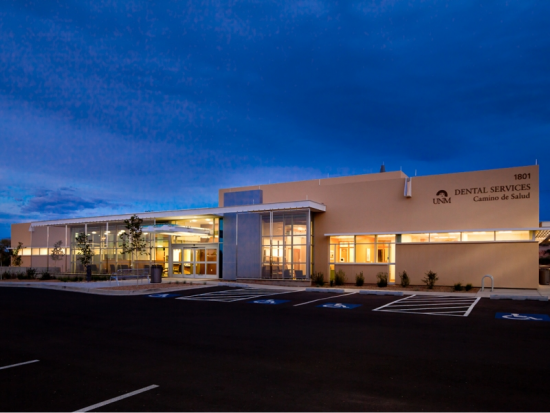

Main Entry with lobby which split dental clinic access to the left and surgery center access to the right.
Main Entry with lobby which split dental clinic access to the left and surgery center access to the right.

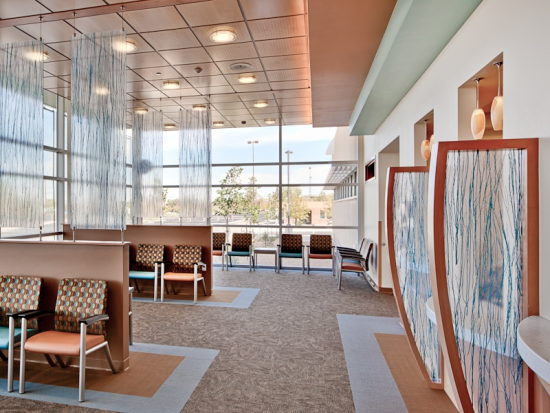

Waiting room for dental clinic with views to the exterior.
Waiting room for dental clinic with views to the exterior.

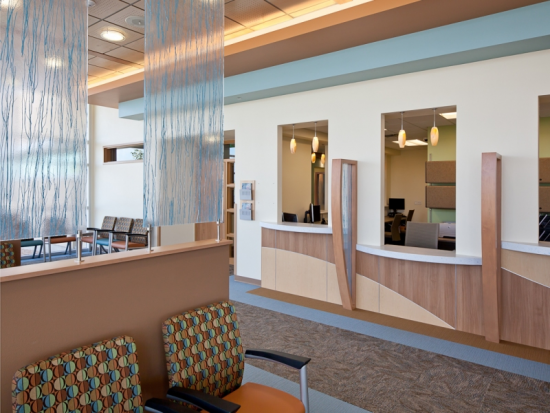

Reception area at the waiting room.
Reception area at the waiting room.

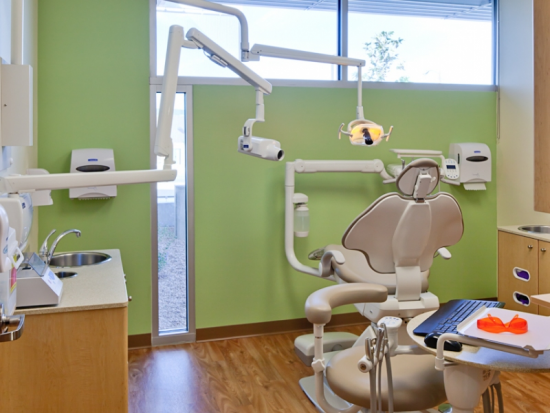

Dental operatory with backlit image and clear story glazing for positive distractions and daylighting in every operatory.
Dental operatory with backlit image and clear story glazing for positive distractions and daylighting in every operatory.

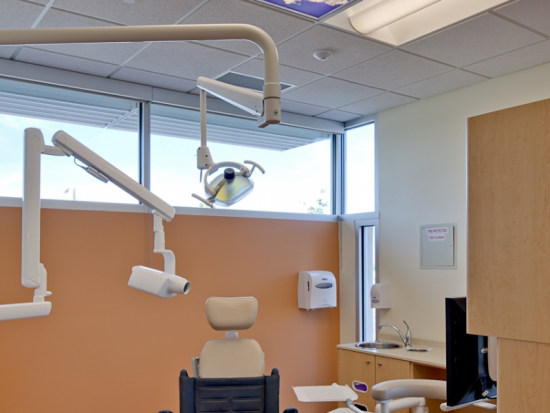

Accessible dental operatory.
Accessible dental operatory.

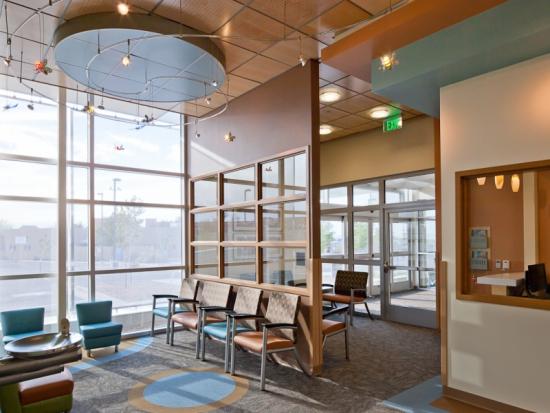

Pediatric and adult waiting at dental ambulatory surgery center.
Pediatric and adult waiting at dental ambulatory surgery center.

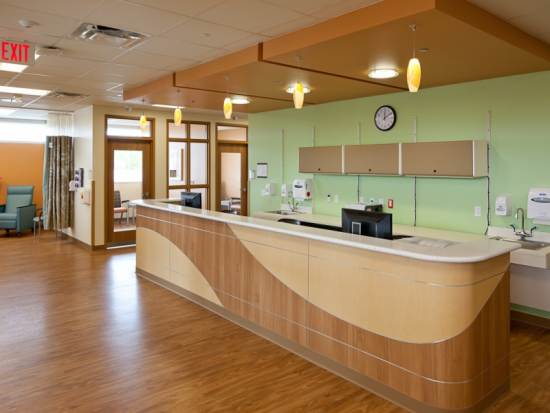

Nurse station at Pre and Post Op areas in dental ambulatory surgery center.
Nurse station at Pre and Post Op areas in dental ambulatory surgery center.
Post Anesthesia Care Unit.  Backlit Images and daylighting serve as positive distractions.
Post Anesthesia Care Unit. Backlit Images and daylighting serve as positive distractions.

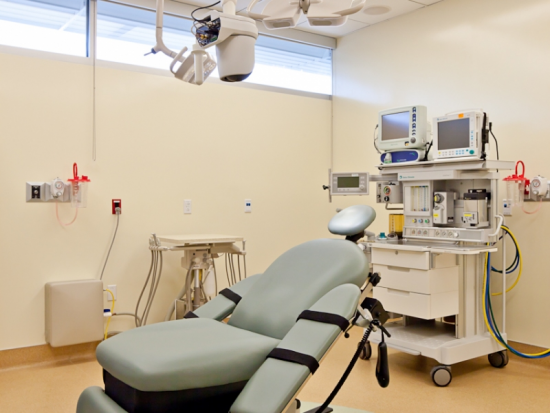

Operating Room.
Operating Room.

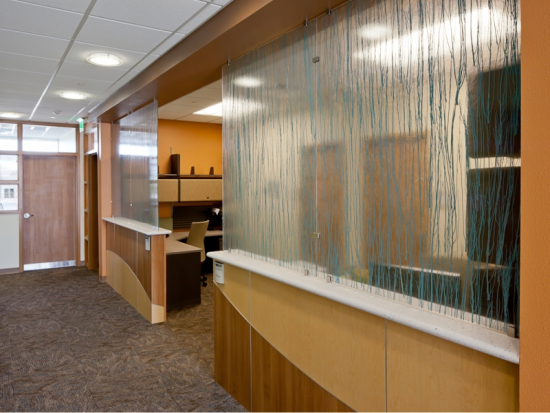

Administrative areas.
Administrative areas.

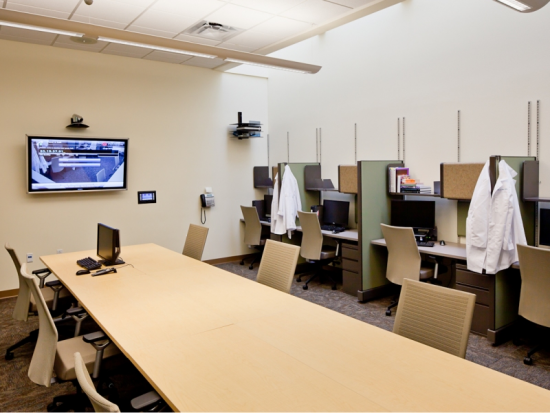

Graduate Dental Student work area and study hall. 10 workstation plus conference table.  The monitor is connected to the ORs.
Graduate Dental Student work area and study hall. 10 workstation plus conference table. The monitor is connected to the ORs.

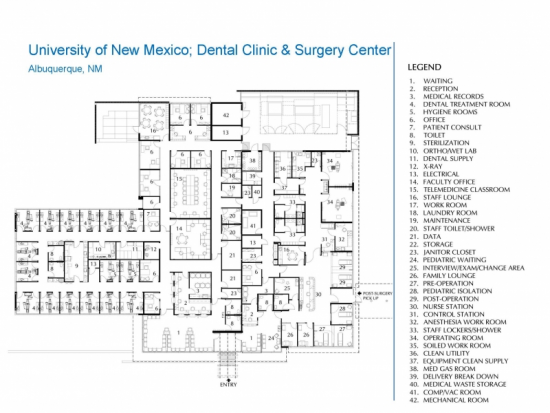

Annotated Floor Plan
Annotated Floor Plan
Location:
Albuquerque, New Mexico
Architect:
RMKMA and Jain Malkin Inc.
Opening Date:
July 25, 2011
Setting:
Urban
Type of Facility:
New Facility
Size:
16,675 sq ft.
Services Offered: Dental
Additional Services: Graduate Dental program of 10 students, Oral Surgeries in two operating room AAAHC accredited ambulatory surgery center
Safety Net Facility:
Yes
Number of Exam Rooms:
16 rooms
Number of Floors:
1 floor
Number of Floors Occupied:
1 floor


About This Clinic

There are two main components of the project: A single story 11,000 square foot general dentistry clinical building; and a 5,600 square foot ambulatory surgical center. The scope of services includes the provision of outpatient dental clinical services, including the vast number of young children with significant dental disease and medically complex adult patients. Patient supportive services will provided including patient navigator in also be relieving severe pain and infection and then finding patients an appropriate dental home. The dental ambulatory surgery center will serve as resource for patients and faculty growth allowing more specialized services for
patients.



This project allowed UNM to fulfill its mission to serve the indigent by doubling the graduate  dental residency program from five to ten residents and it allows the State to recruit more  dentists to stay in New Mexico.  New Mexico is underserved in the number of dentist per  capita.  This project is a catalyst for UNM to develop a dental school in the near future.


Programming Process

This project was a true collaboration between two well respected healthcare design firms.   Rhode May Keller McNamara Architects (RMKMA) from Albuquerque and Jain Malkin Inc. (JMI) from San Diego.  Upon program confirmation by JMI, then RMKMA pursued the site issues and  produced a development footprint based on all the contextual site issues.  JMI took  this development footprint and completed a medical and dental space plan for the project. Once the space plan was approved by the client, then RMKMA developed the architecture  for the building, while JMI worked on the design development and construction documents  for the interior architecture.

Included in this project are 16 dental operatories for the graduate dental residency  program and faculty and an ambulatory surgery center which contains two operating  rooms.  The two occupancies are separated by a one-hour separation wall.  There is a  medical gas room and an on-site emergency generator, amongst all the other required  rooms to support the services programmed.  The ambulatory surgery center is fully  licensed by the Department of Health for the State of New Mexico on behalf of Centers for  Medicaid Services and is AAAHC accredited.


Built Environment Features

The site for the new clinic is located on the UNM Heath Sciences campus.  Automobiles can easily access the site from University Boulevard and there is a public bus stop one black away, there is also an on campus shuttle stop about 100 yards away.  Convenient parking is provided for patients as well as staff, as well as designated parking for low emission vehicles and carpools.  Our goal was to obtain USGBC's LEED Silver however after evaluation by USGBC all our points were accepted and the building is LEED GOLD certified by USGBC.  Also note the access to daylighting throughout the facility for all patient and staff areas.
